Bodywork
Interior fittings
Bravo-Brava
70.
P4A036M02

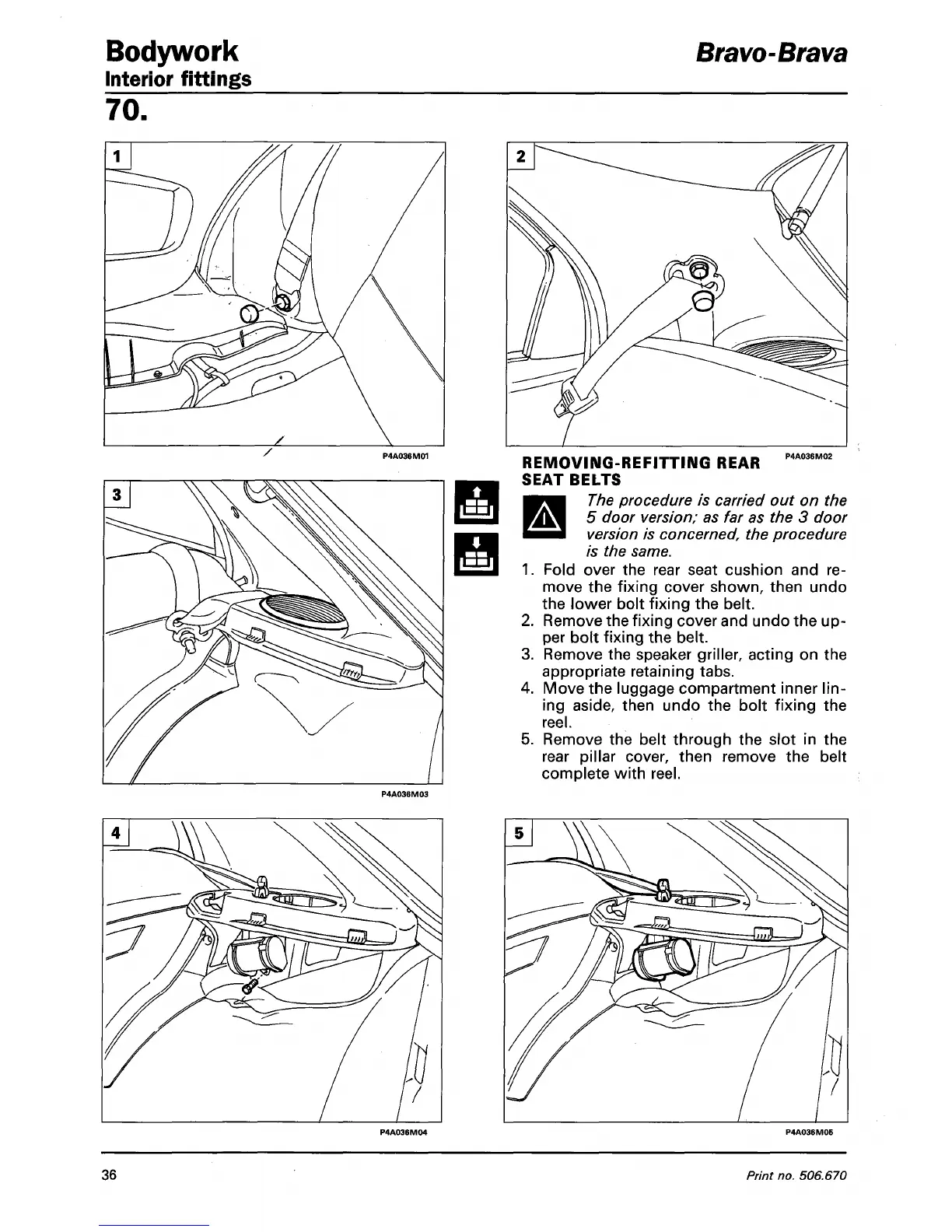

REMOVING-REFITTING REAR
SEAT BELTS
■£■
The procedure is carried out on the
BMCT
5 door version; as far as the 3 door
HH
version is concerned, the procedure
is the same.
1.
Fold over the rear seat cushion and re-
move the fixing cover shown, then undo
the lower bolt fixing the belt.
2.
Remove the fixing cover and undo the up-
per bolt fixing the belt.
3. Remove the speaker griller, acting on the
appropriate retaining tabs.
4.
Move the luggage compartment inner
lin-
ing aside, then undo the bolt fixing the
reel.
5. Remove the belt through the slot in the
rear pillar cover, then remove the belt
complete with
reel.
36
Print
no. 506.670
