Fiat Brava - Removing-Refitting External Rearview Mirror

To Next Page

To Previous Page

Bravo-Brava Electrical system

Electrically-operated rearview mirrors

55.

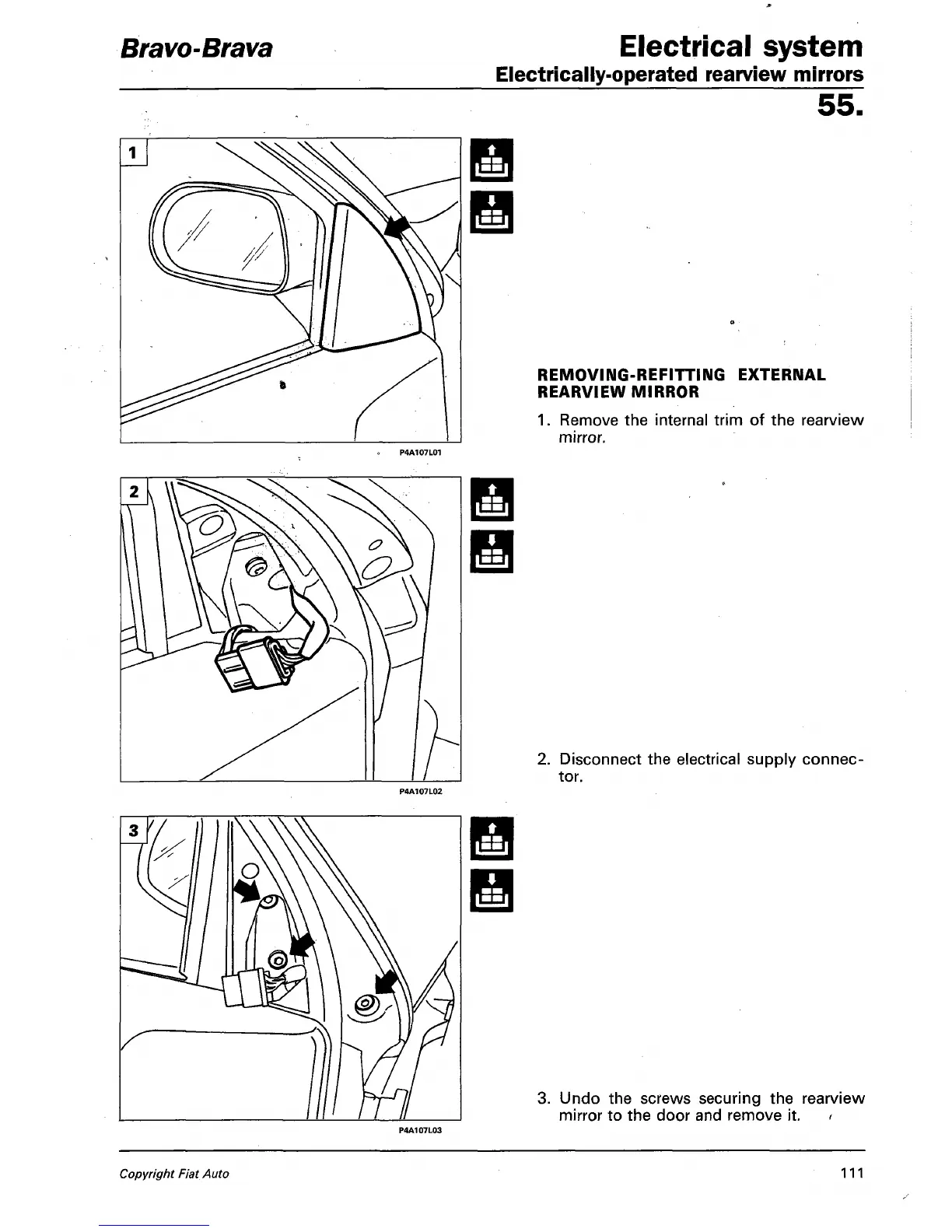

REMOVING-REFITTING EXTERNAL

REARVIEW MIRROR

Remove the internal trim of the rearview

mirror.

Disconnect the electrical supply connec-

tor.

3. Undo the screws securing the rearview

mirror to the door and remove it. <

111
