Fiat Brava - Number Plate Light; Courtesy Lights

Bravo-Brava
Electrical system
Lighting
1
nr^=5rn
.llT-rrrriri^-d^iB? |
—1 / '-
-
55.

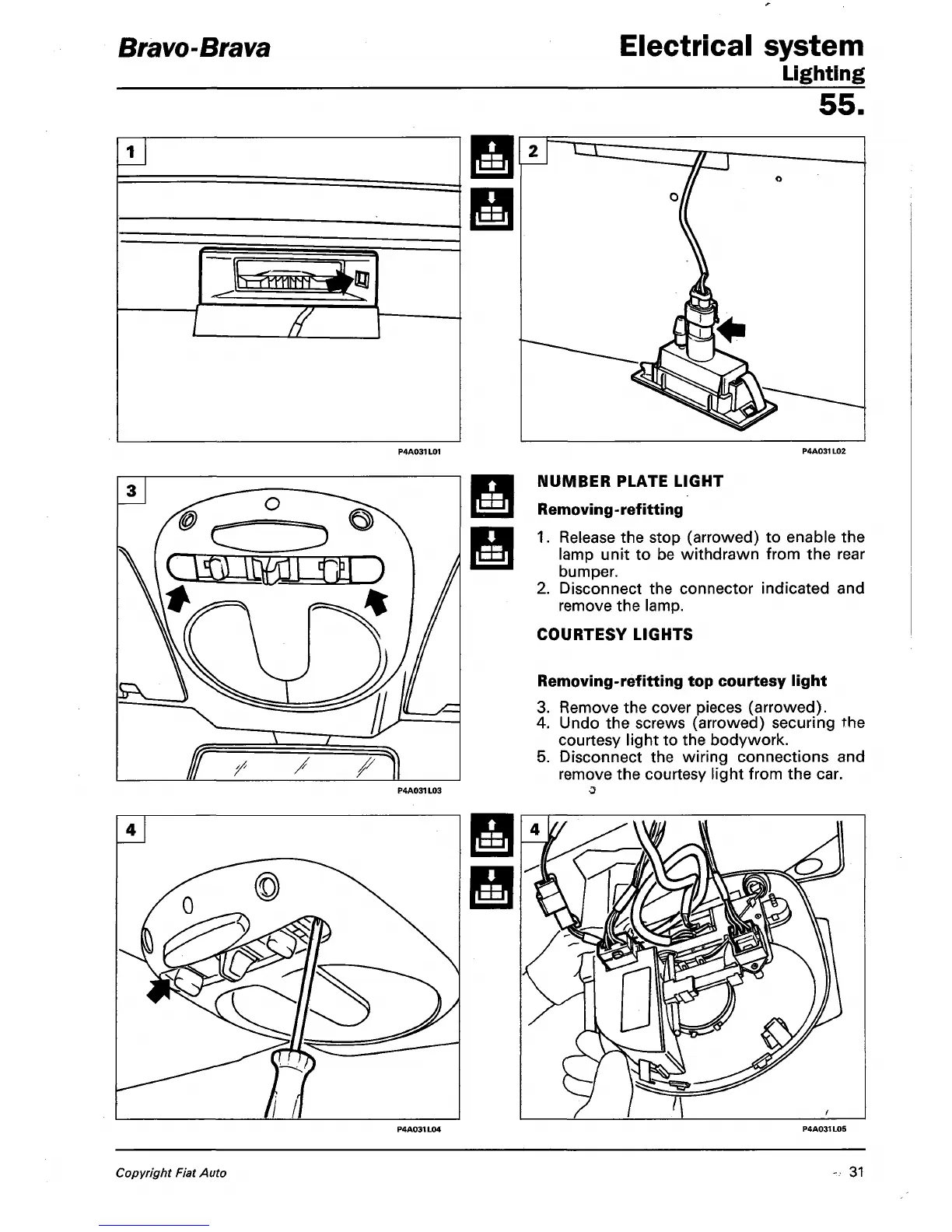

NUMBER PLATE LIGHT
Removing - refitti ng
1. Release the stop (arrowed) to enable the
lamp unit to be withdrawn from the rear
bumper.
2. Disconnect the connector indicated and
remove the lamp.
COURTESY LIGHTS
Removing-refitting top courtesy light
3. Remove the cover pieces (arrowed).
4. Undo the screws (arrowed) securing the
courtesy light to the bodywork.
5. Disconnect the wiring connections and
remove the courtesy light from the car.
Copyright Fiat Auto
31
