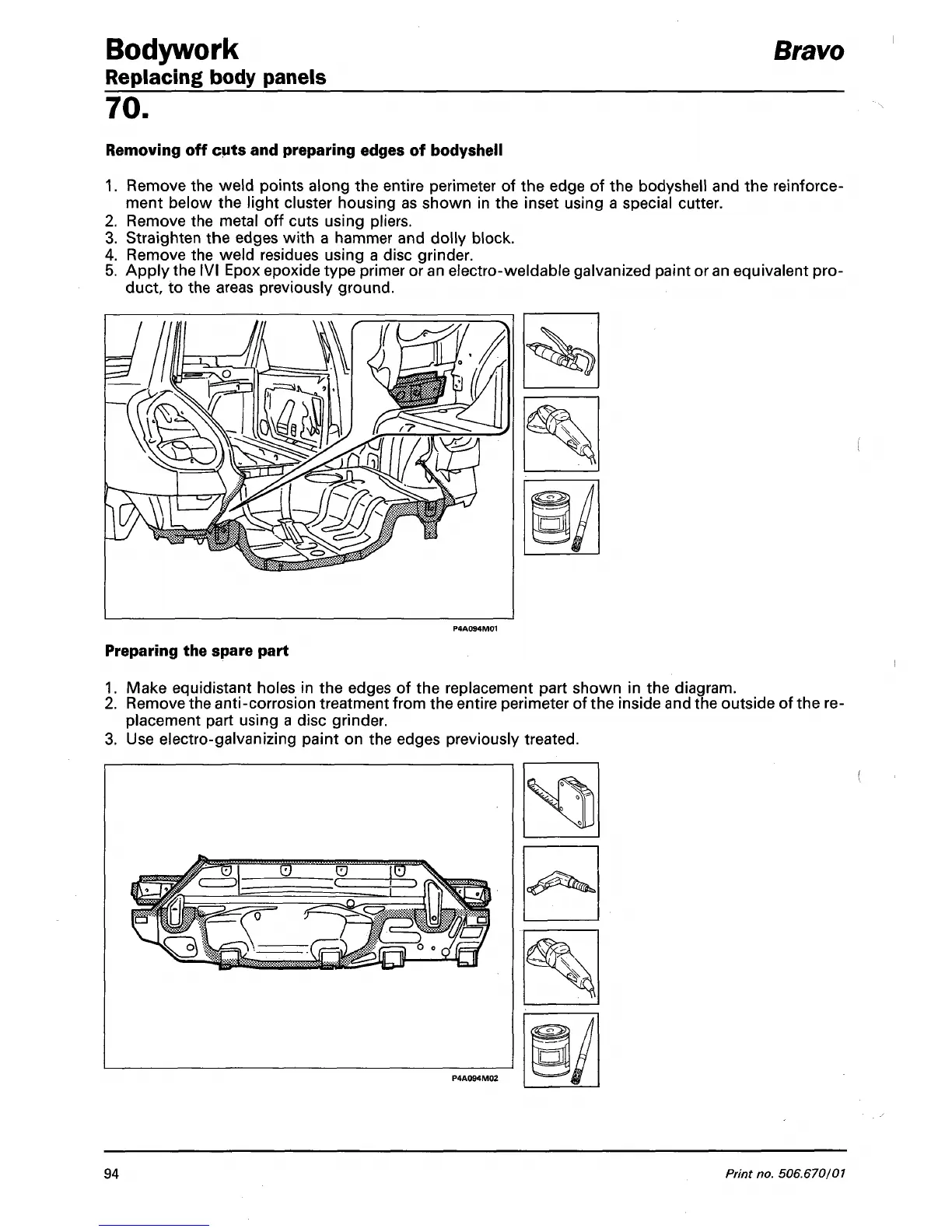

Bodywork
Replacing body panels
Bravo
70-
Removing off cuts and preparing edges of bodyshell
1.
Remove the weld points along the entire perimeter of the edge of the bodyshell and the reinforce-
ment below the light cluster housing as shown in the inset using a special cutter.
2.
Remove the metal off cuts using pliers.
3. Straighten the edges with a hammer and dolly block.
4.
Remove the weld residues using a disc grinder.
5. Apply the IVI Epox epoxide type primer or an electro-weldable galvanized paint or an equivalent pro-
duct, to the areas previously ground.
Preparing the spare part
1.
Make equidistant holes in the edges of the replacement part shown in the diagram.
2.
Remove the anti-corrosion treatment from the entire perimeter of the inside and the outside of the re-
placement part using a disc grinder.
3. Use electro-galvanizing paint on the edges previously treated.
V
^vO -
94
Print
no,
506.670/01
