Bravo-Brava
Bodywork
Rear door
70.

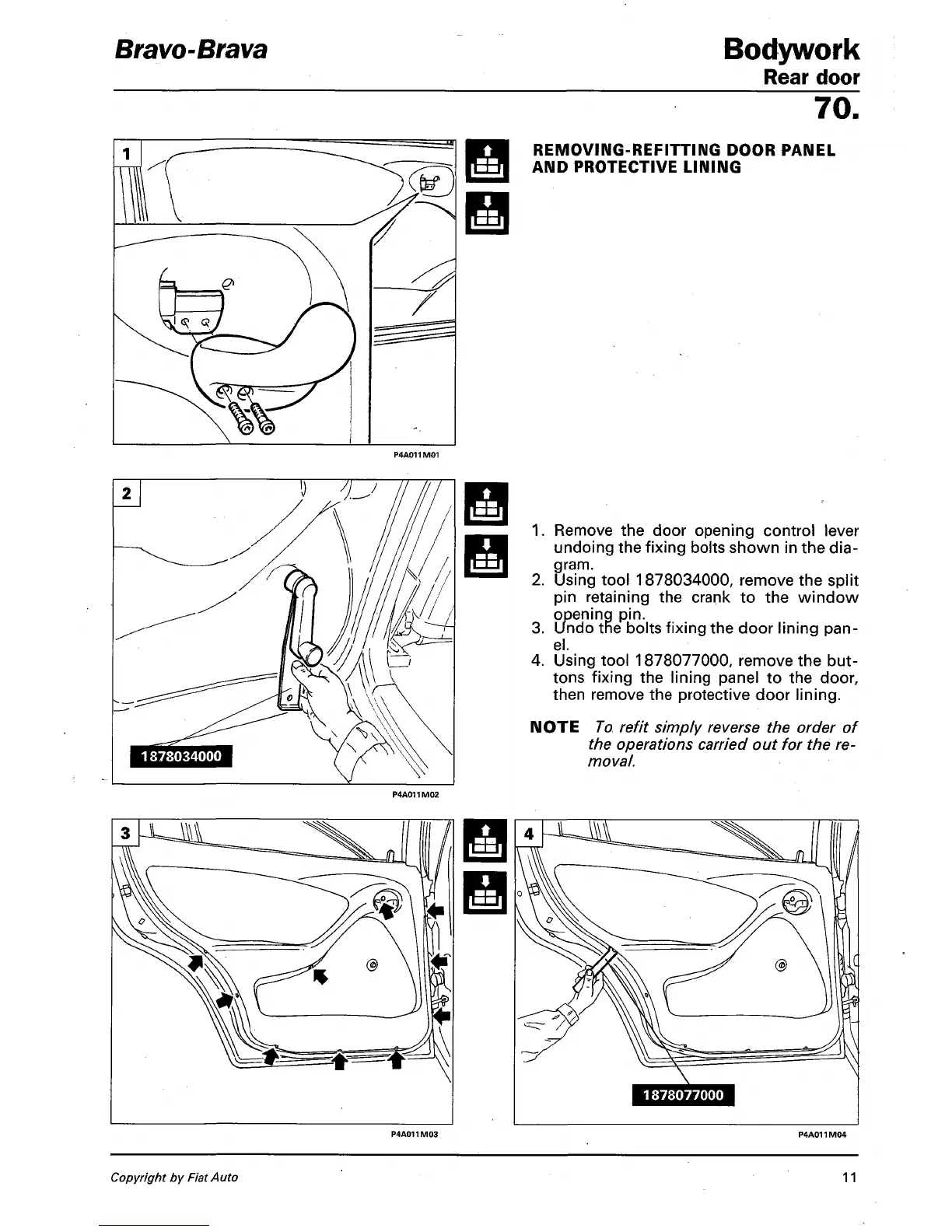

REMOVING-REFITTING DOOR PANEL
AND PROTECTIVE LINING
1.
Remove the door opening control lever
undoing the fixing bolts shown in the dia-
gram.
2.
Using tool 1878034000, remove the split
pin retaining the crank to the window
opening pin.
3. undo the bolts fixing the door lining
pan-
el.
4.
Using tool 1878077000, remove the but-
tons fixing the lining panel to the door,
then remove the protective door lining.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
Copyright by Fiat Auto
11
