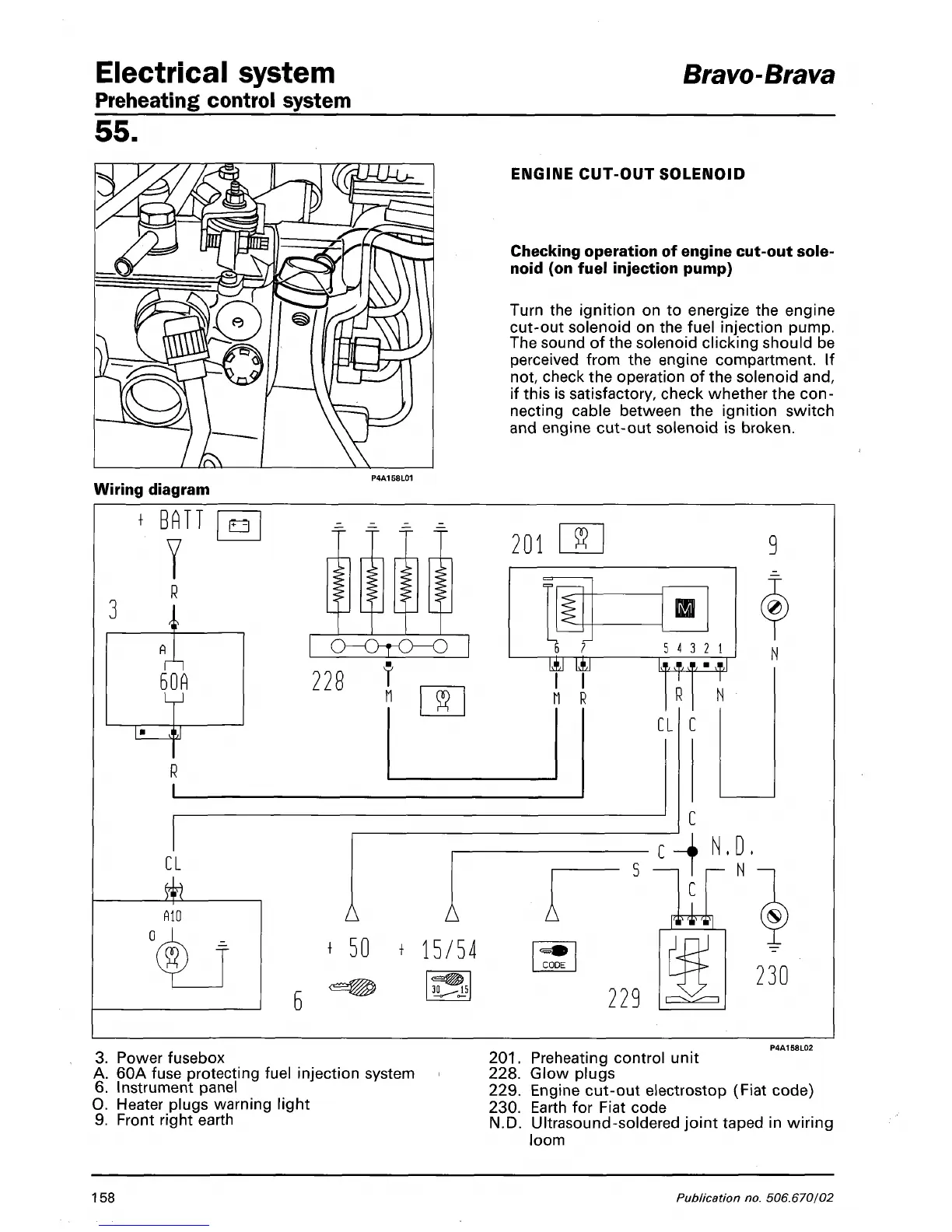

Electrical system
Preheating control system
Bravo-Brava
55.
ENGINE CUT-OUT SOLENOID
Checking operation of engine cut-out sole-
noid (on fuel injection pump)
Turn the ignition on to energize the engine
cut-out solenoid on the fuel injection pump.
The sound of the solenoid clicking should be
perceived from the engine compartment. If
not, check the operation of the solenoid and,
if this is satisfactory, check whether the
con-
necting cable between the ignition switch
and engine cut-out solenoid is broken.
Wiring diagram
t BATT
Y
R
4
£3
60A
201
ffi
(H>T{H)
c=3
1
m
228
I
L^
ii
ffi
6
7
I
I
n
R
5
4 3 2 1
f< 11 ■ »f I
R
CL
A
c
.D.
A
A
c
t
50 +
15/54
30
15
CODE
229
j
3. Power fusebox
A. 60A fuse protecting fuel injection system
6. Instrument panel
0. Heater plugs warning light
9. Front right earth
201.
Preheating control unit
228.
Glow plugs
229.
Engine cut-out electrostop (Fiat code)
230.
Earth for Fiat code
N.D. Ultrasound-soldered joint taped in wiring
loom
158 Publication no. 506.670/02
