Bravo-Brava

Electrical equipment

Air bag

55.

NOTE Check the insulation retaining brack-

et is correctly positioned, then refit

the control unit by carrying out re-

moval instructions in reverse

order.

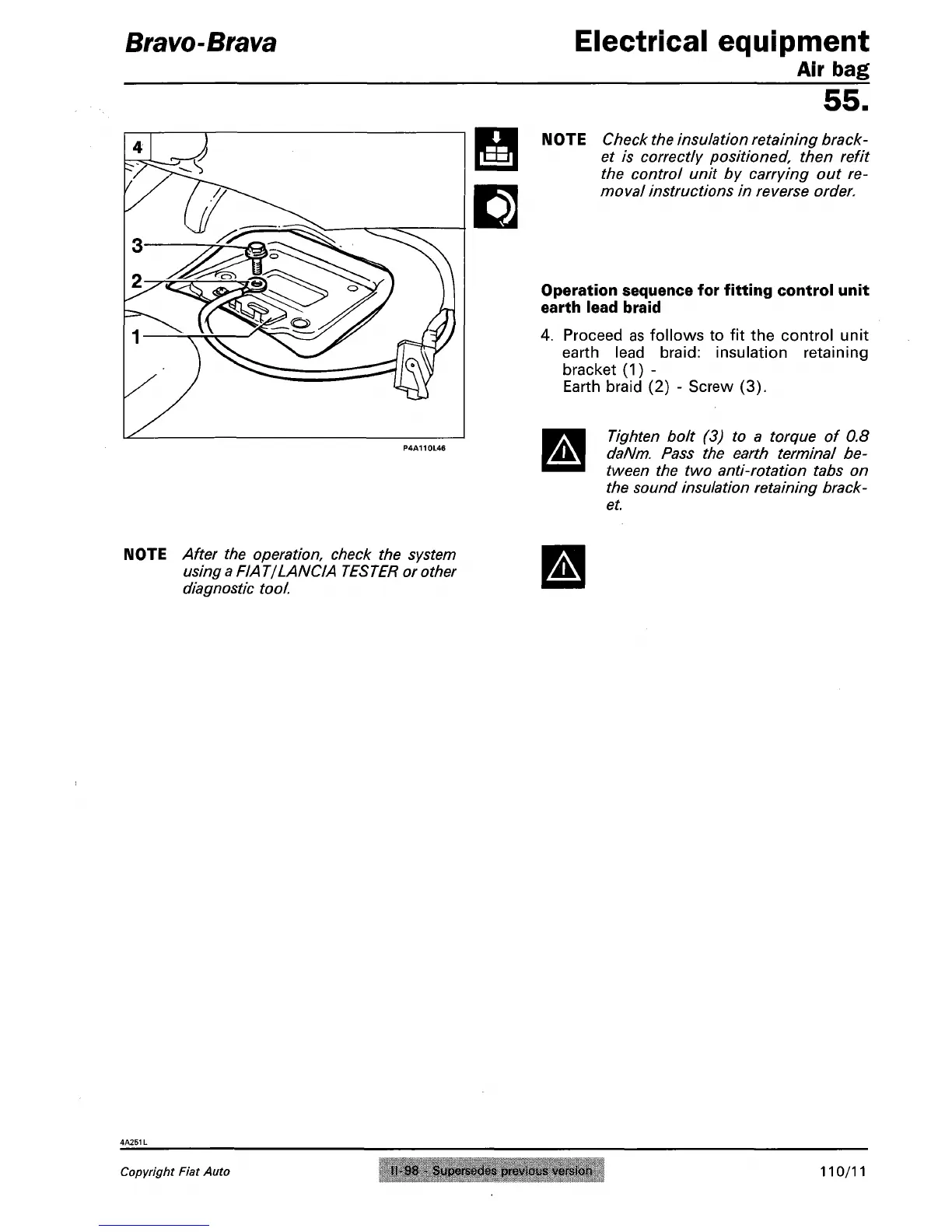

Operation sequence for fitting control unit

earth lead braid

Proceed as follows to fit the control unit

earth lead braid: insulation retaining

bracket (1) -

Earth braid (2) - Screw (3).

Tighten bolt (3) to a torque of 0.8

daNm. Pass the earth terminal be-

tween the two anti-rotation tabs on

the sound insulation retaining brack-

et.

NOTE After the operation, check the system

using

a FIA

T/LANCIA

TESTER

other

diagnostic

tool.

fj/11
