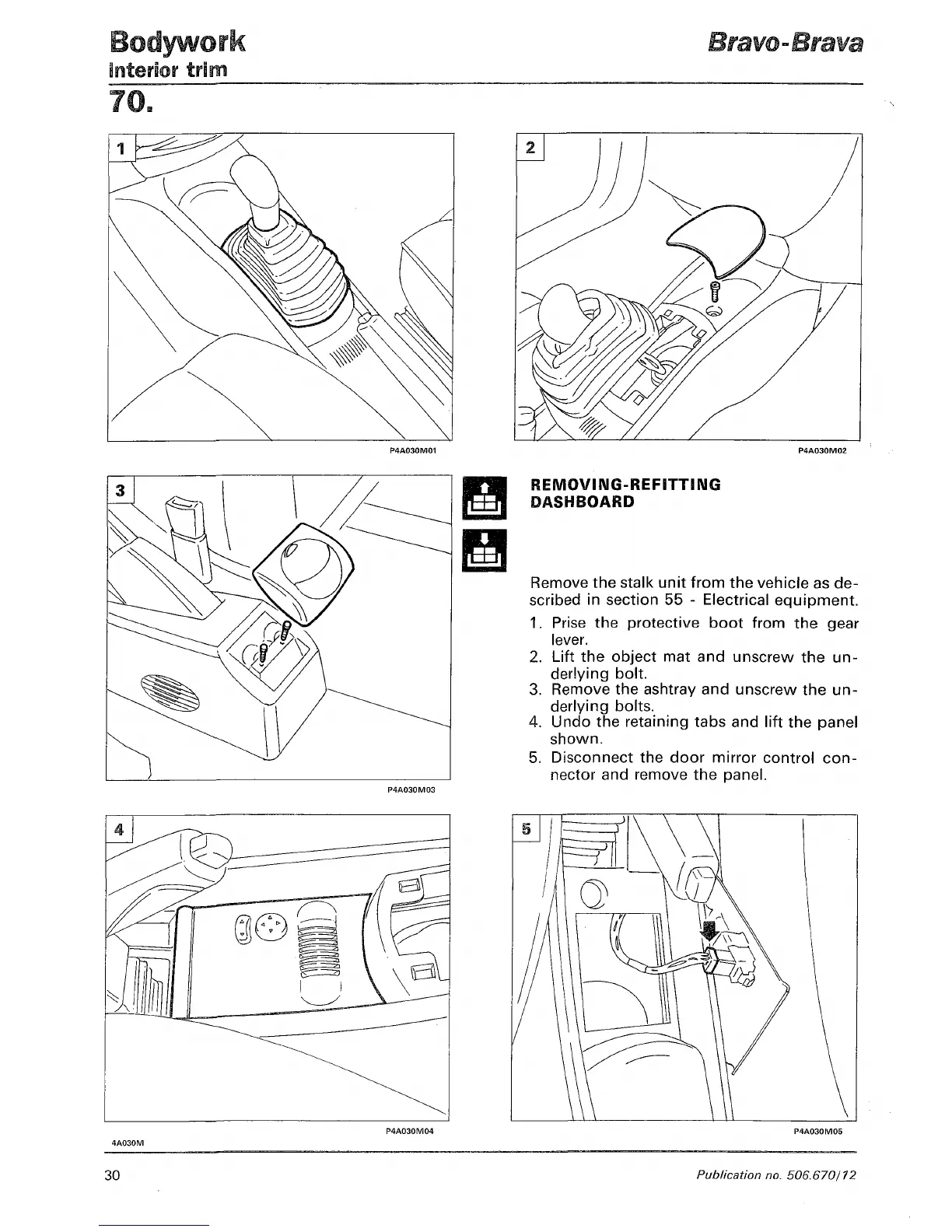

REM0VIIMG-REFITT9NG

DASHBOARD

Remove the stalk unit from the vehicle as de-

scribed in section 55 - Electrical equipment.

Prise the protective boot from the gear

lever.

Lift the object mat and unscrew the un-

derlying bolt.

3. Remove the ashtray and unscrew the un-

derlying bolts.

Undo the retaining tabs and lift the panel

shown.

5. Disconnect the door mirror control

con-

nector and remove the panel.

Publication no. 506.670/72
