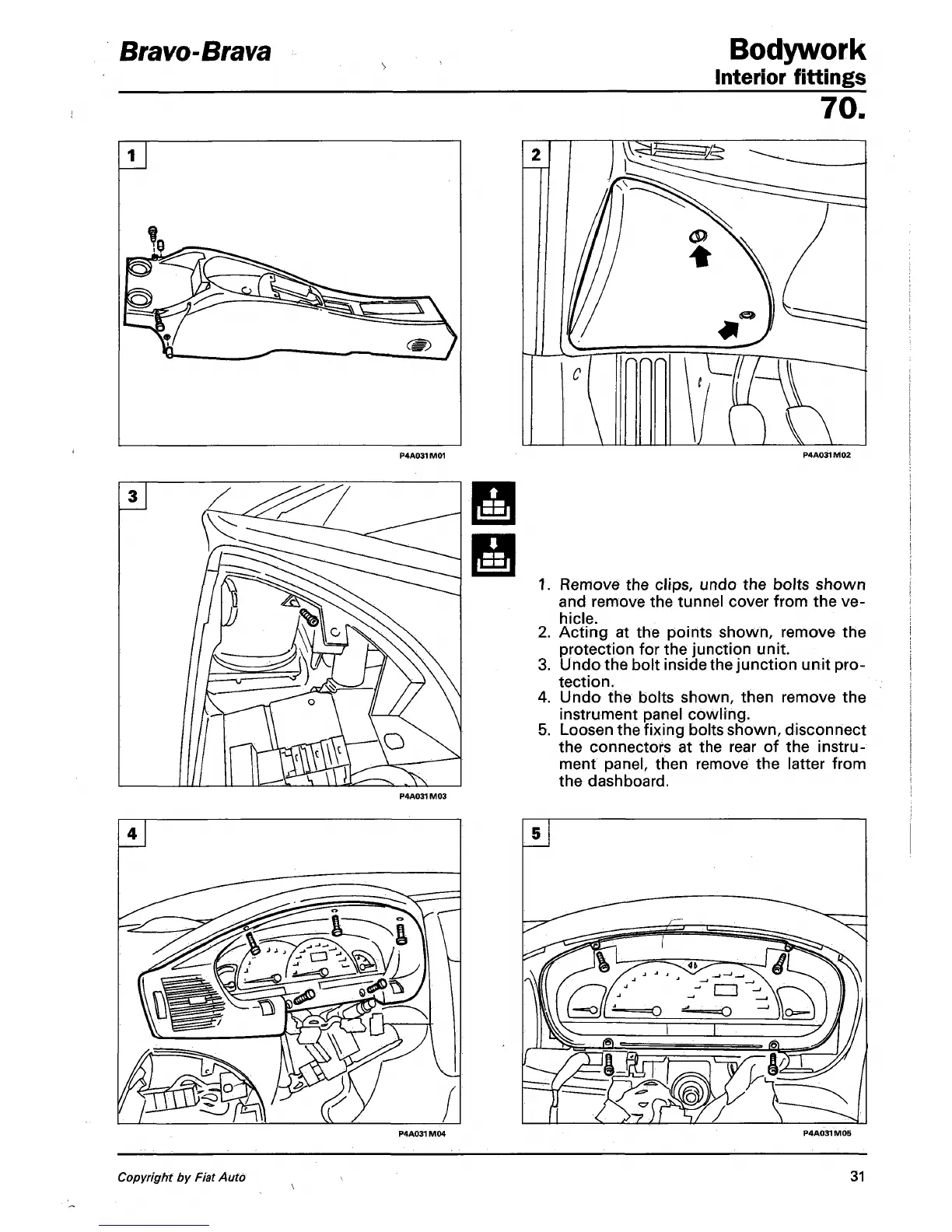

Bravo-Brava
Bodywork
Interior fittings
70.
1.
Remove the clips, undo the bolts shown
and remove the tunnel cover from the ve-
hicle.
2.
Acting at the points shown, remove the
protection for the junction unit.
3. Undo the bolt inside the junction unit pro-
tection.
4.
Undo the bolts shown, then remove the
instrument panel cowling.
5. Loosen the fixing bolts shown, disconnect
the connectors at the rear of the instru-
ment panel, then remove the latter from
the dashboard.
P4A031M04
P4A031M05
Copyright by
Fiat
Auto
31
