Bravo-Brava

Bodywork

Squaring body

70.

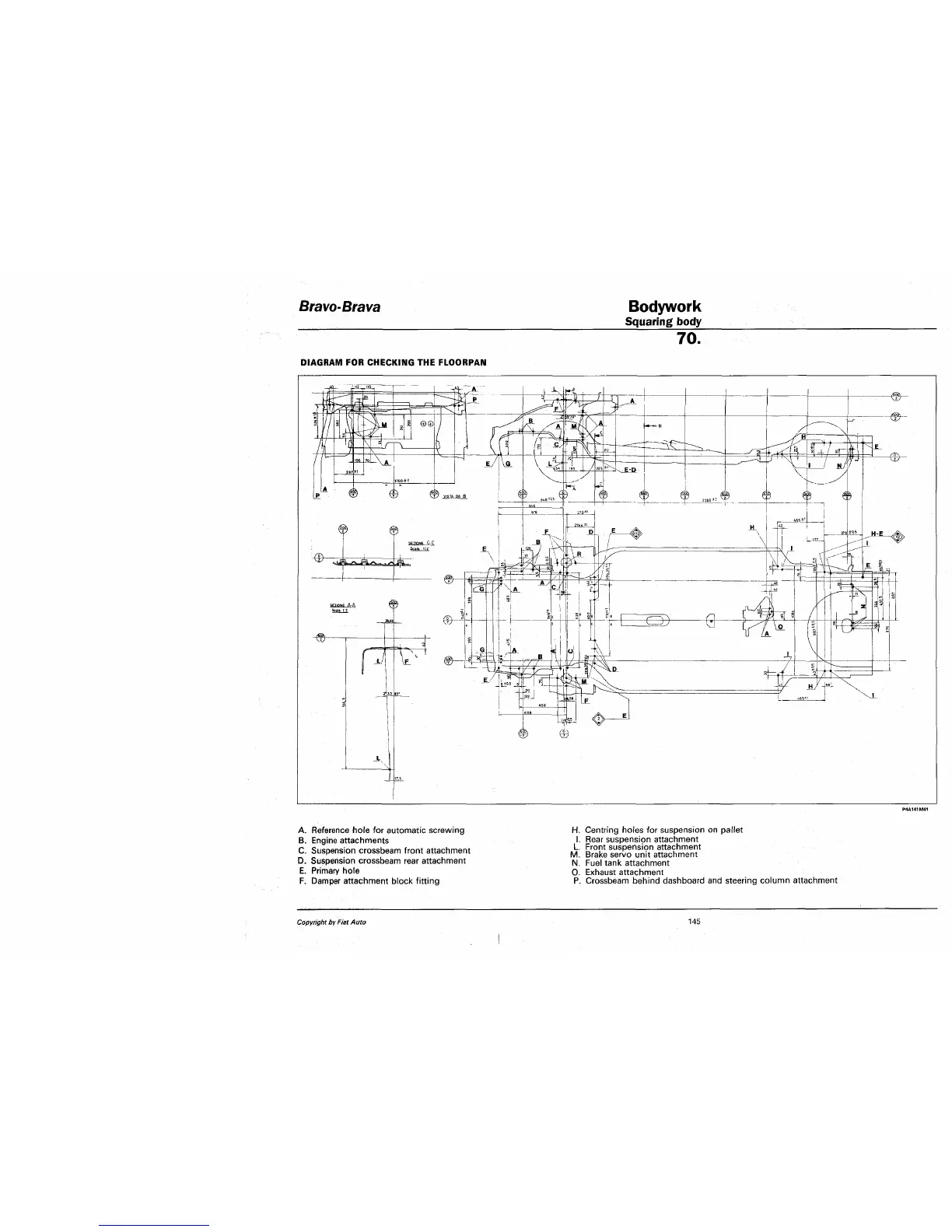

DIAGRAM FOR CHECKING THE FLOORPAN

A. Reference hole for automatic screwing

B. Engine attachments

C. Suspension crossbeam front attachment

D. Suspension crossbeam rear attachment

E. Primary hole

F. Damper attachment block fitting

H. Centring holes for suspension on pallet

I. Rear suspension attachment

L. Front suspension attachment

M. Brake servo unit attachment

N. Fuel tank attachment

0. Exhaust attachment

P. Crossbeam behind dashboard and steering column attachment

145
