Fiat Brava - Removing-Refitting Rear Lights Cluster

Electrical system
Lighting
Bravo-Brava
55.
1
Y|^ i
> j p
—^t— • *
*

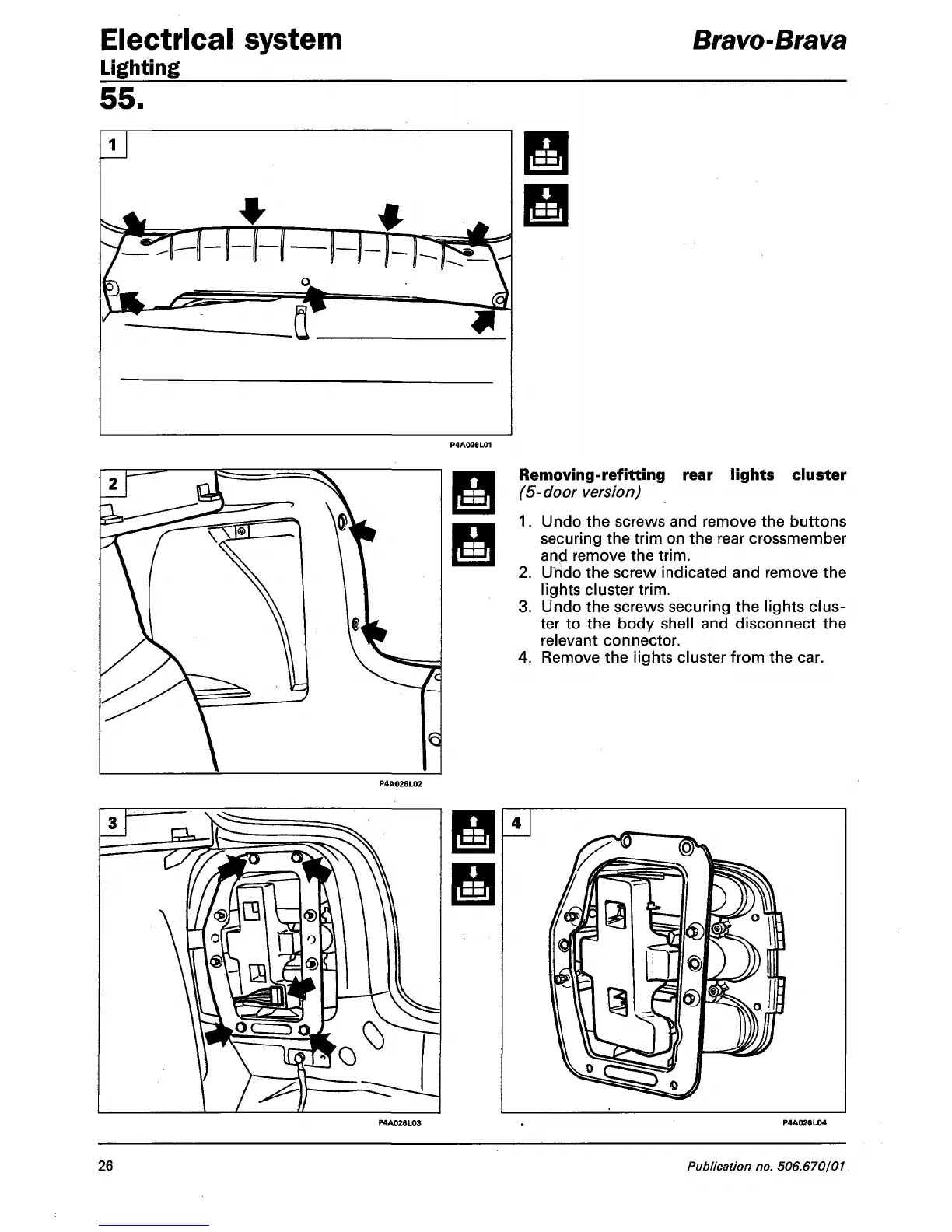

Removing-refitting
(5-door version)
rear lights cluster
1. Undo the screws and remove the buttons
securing the trim on the rear crossmember
and remove the trim.
2. Undo the screw indicated and remove the
lights cluster trim.
3. Undo the screws securing the lights clus-
ter to the body shell and disconnect the
relevant connector.
4. Remove the lights cluster from the car.
26
Publication no. 506.670/01
