Fiat Brava - List of Fuses and Main Protected Circuits

Electrical system Bravo-Brava
Fuse, relay and control units
55.

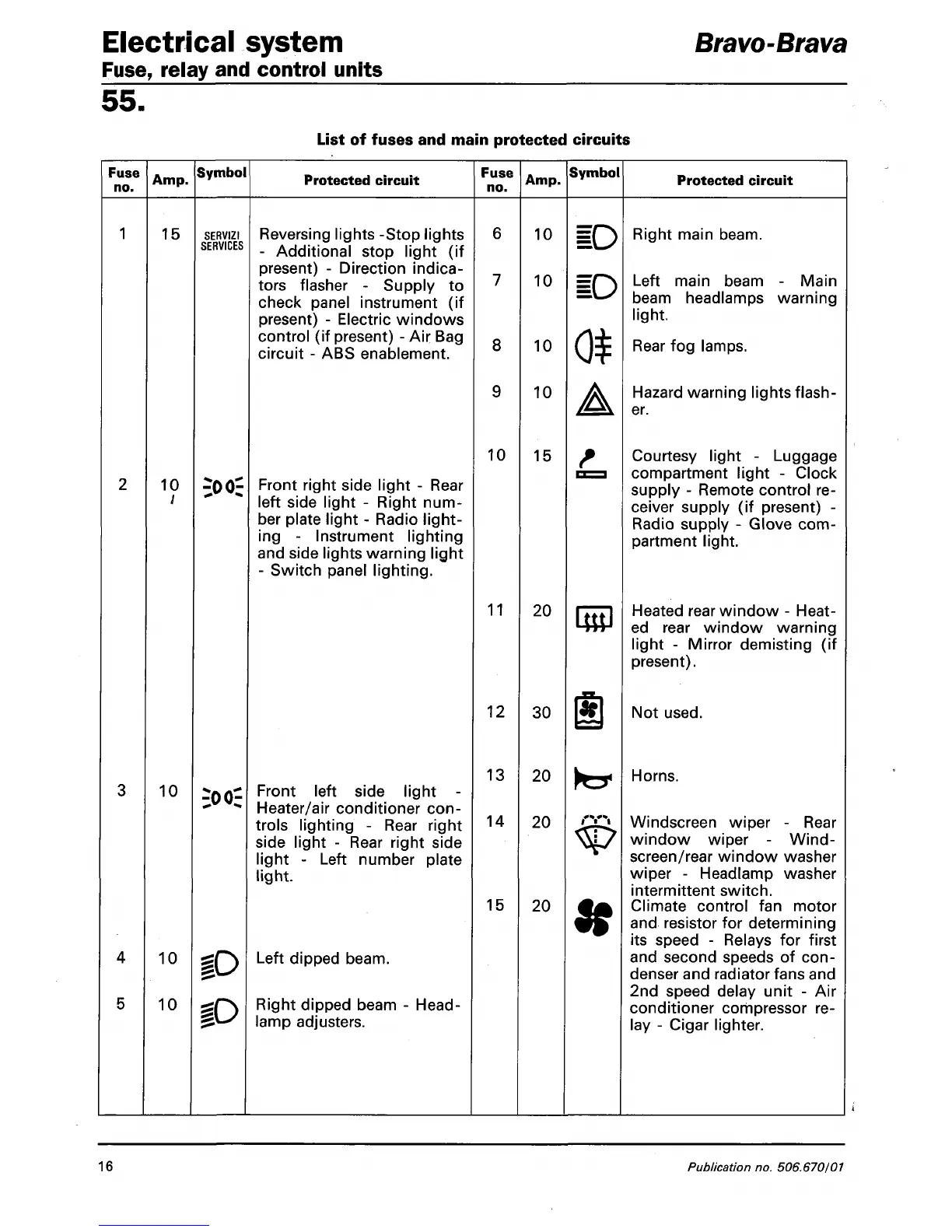

List of fuses and main protected circuits
Fuse
no.
1
2
3
4
5
Amp.
15
10
/
10
10
10
Symbol
SERVIZI
SERVICES
3><g
-00-
^
vv
^
ID
ID
Protected circuit
Reversing lights -Stop lights
- Additional stop light (if
present) - Direction indica-
tors flasher - Supply to
check panel instrument (if
present) - Electric windows
control (if present) - Air Bag
circuit - ABS enablement.
Front right side light - Rear
left side light - Right num-
ber plate light - Radio light-
ing - Instrument lighting
and side lights warning light
- Switch panel lighting.
Front left side light -
Heater/air conditioner con-
trols lighting - Rear right
side light - Rear right side
light - Left number plate
light.
Left dipped beam.
Right dipped beam - Head-
lamp adjusters.
Fuse
no.
6
7
8
9
10
11
12
13
14
15
Amp.
10
10
10
10
15
20
30
20
20
20
Symbol
ID
ID
0*
A
r
Hi
di
te*
^
tt
Protected circuit
Right main beam.
Left main beam - Main
beam headlamps warning
light.
Rear fog lamps.
Hazard warning lights flash-
er.
Courtesy light - Luggage
compartment light - Clock
supply - Remote control re-
ceiver supply (if present) -
Radio supply - Glove com-
partment light.
Heated rear window - Heat-
ed rear window warning
light - Mirror demisting (if
present).
Not used.
Horns.
Windscreen wiper - Rear
window wiper - Wind-
screen/rear window washer
wiper - Headlamp washer
intermittent switch.
Climate control fan motor
and resistor for determining
its speed - Relays for first
and second speeds of con-
denser and radiator fans and
2nd speed delay unit - Air
conditioner compressor re-
lay - Cigar lighter.
16
