Electrical equipment
Recharging
Bravo-Btava
55.

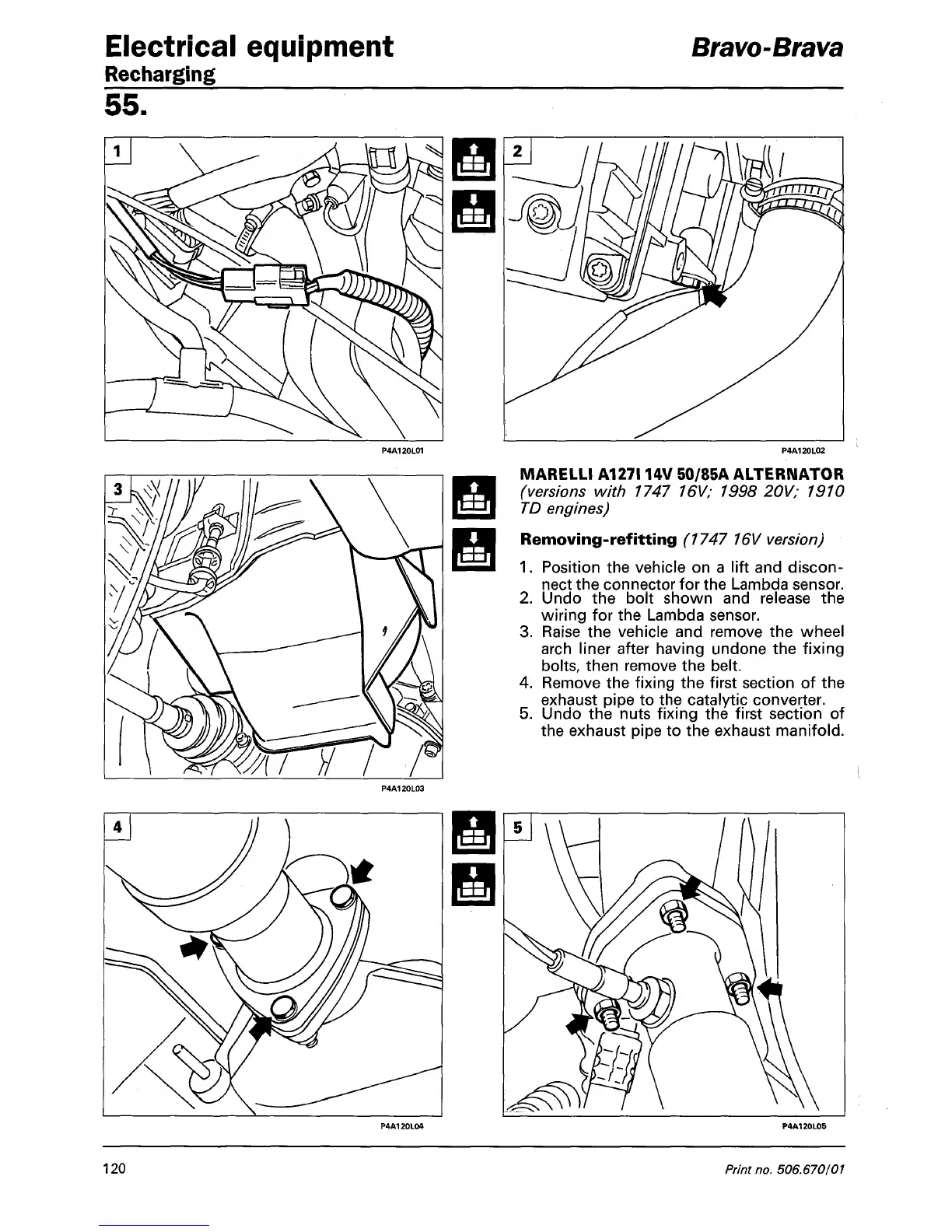

MARELLI A127114V 50/85A ALTERNATOR
(versions with 1747 16V; 1998 20V; 1910
TD engines)
Removing-refitting (1747 16V version)
1.
Position the vehicle on a lift and discon-
nect the connector for the Lambda sensor.
2.
Undo the bolt shown and release the
wiring for the Lambda sensor.
3. Raise the vehicle and remove the wheel
arch liner after having undone the fixing
bolts,
then remove the belt.
4.
Remove the fixing the first section of the
exhaust pipe to the catalytic converter.
5. Undo the nuts fixing the first section of
the exhaust pipe to the exhaust manifold.
120
Print
no.
506.670/01
