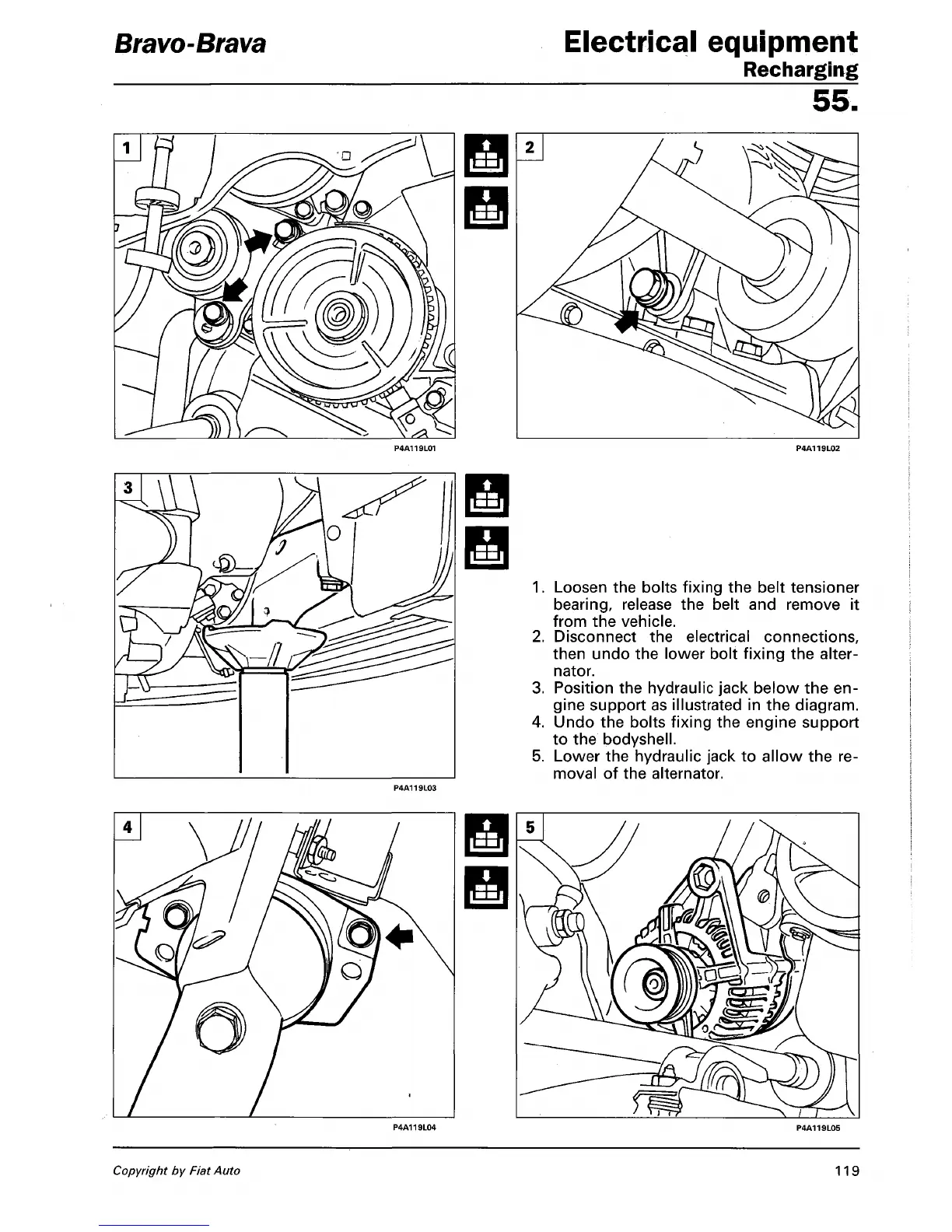

Bravo-Brava Electrical equipment
Recharging
55.
Loosen the bolts fixing the belt tensioner
bearing,
release the belt and remove it
from the vehicle.
Disconnect the electrical connections,
then undo the lower bolt fixing the alter-
nator.
Position the hydraulic jack below the en-
gine support as illustrated in the diagram.
Undo the bolts fixing the engine support
to the bodyshell.
Lower the hydraulic jack to allow the re-
moval of the alternator.
^ \J'I
\<^) /
£
J&HJ
-o*5^\#
Copyright by Fiat Auto
119
