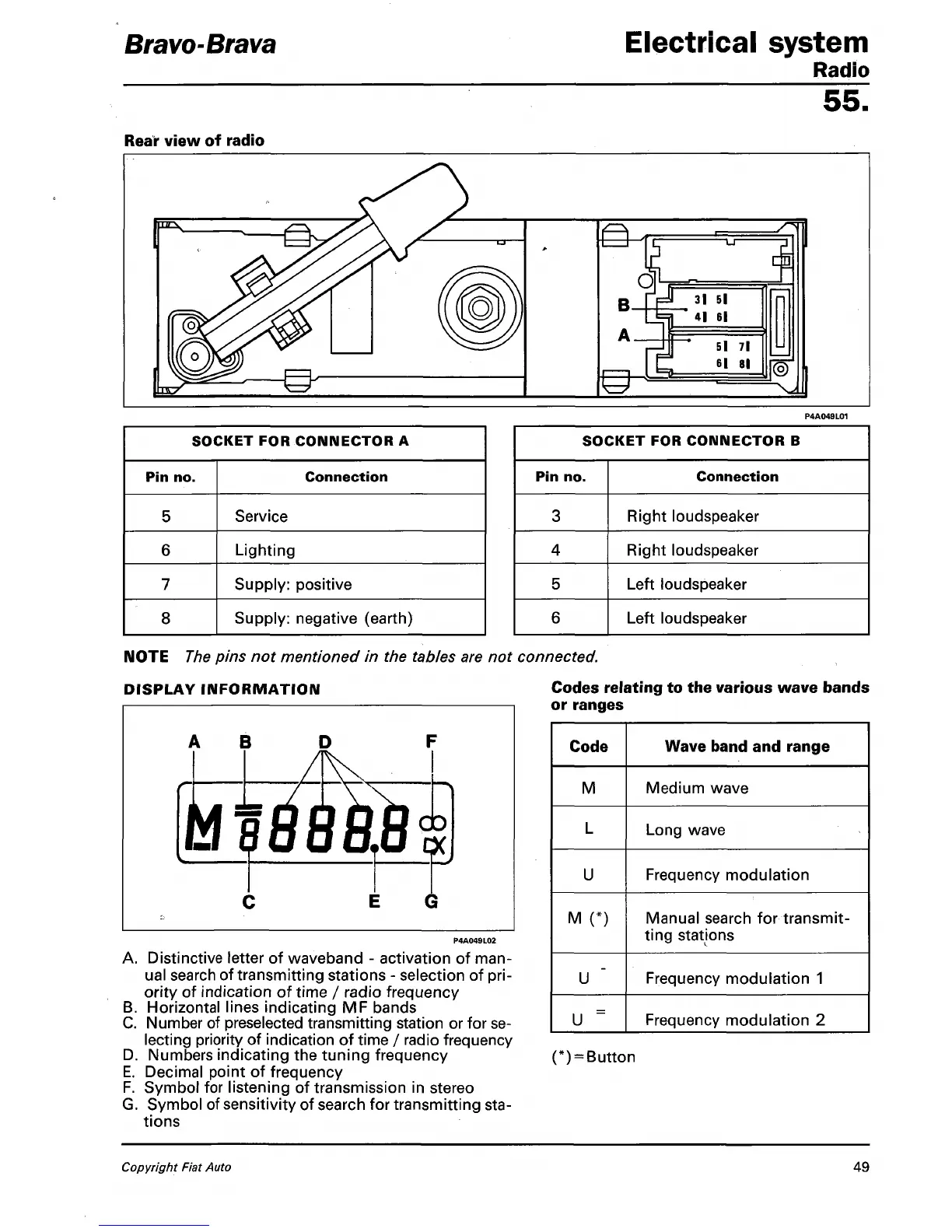

Bravo-Brava
Electrical system
Radio
55.
Rear view
of
radio
SOCKET
FOR
CONNECTOR
A
Pin
no.
5
6
7
8
Connection
Service
Lighting
Supply: positive
Supply: negative (earth)
SOCKET
FOR
CONNECTOR
B
Pin
no.
3
4
5
6
Connection
Right loudspeaker
Right loudspeaker
Left loudspeaker
Left loudspeaker
NOTE The pins
not
mentioned
in the
tables
are not
connected.
DISPLAY INFORMATION
Codes relating
to the
various wave bands
or ranges
P4A049L02
A. Distinctive letter
of
waveband
-
activation
of
man-
ual search
of
transmitting stations
-
selection
of
pri-
ority
of
indication
of
time
/
radio frequency
B. Horizontal lines indicating
MF
bands
C. Number
of
preselected transmitting station
or for
se-
lecting priority
of
indication
of
time
/
radio frequency
D. Numbers indicating
the
tuning frequency
E. Decimal point
of
frequency
F. Symbol
for
listening
of
transmission
in
stereo
G. Symbol
of
sensitivity
of
search
for
transmitting sta-
tions
Code
M
L
U
M (*)
U
U
=
Wave band and range
Medium wave
Long wave
Frequency modulation
Manual search for transmit-
ting stations
Frequency modulation 1
Frequency modulation 2
(*) =
Button
Copyright
Fiat
Auto
