Bodywork
Bonnet lid
Bravo-Brava
70.

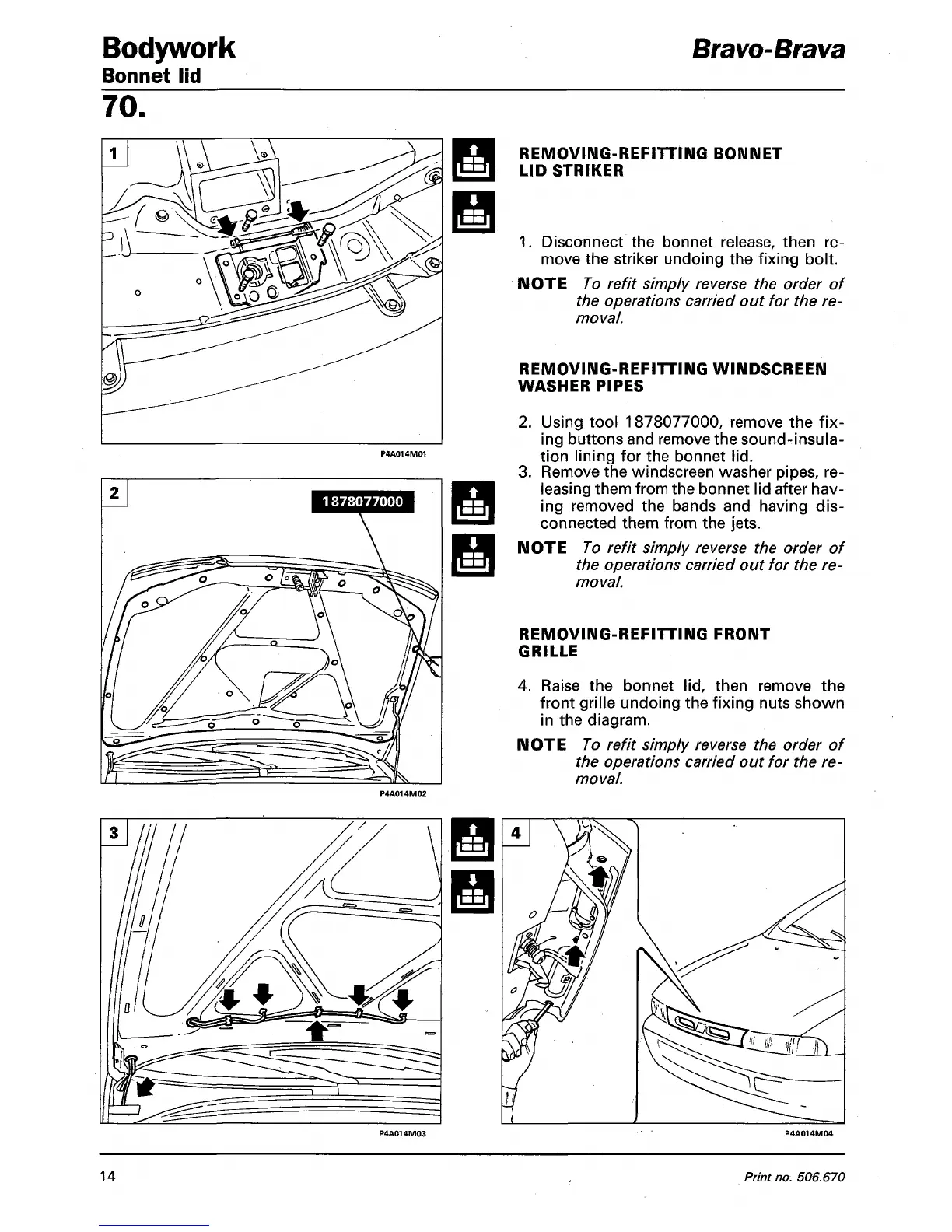

REMOVING-REFITTING BONNET
LID STRIKER
1.
Disconnect the bonnet release, then re-
move the striker undoing the fixing bolt.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
REMOVING-REFITTING WINDSCREEN
WASHER PIPES
2.
Using tool 1878077000, remove the fix-
ing buttons and remove the sound-insula-
tion lining for the bonnet lid.
3. Remove the windscreen washer pipes, re-
leasing them from the bonnet lid after hav-
ing removed the bands and having dis-
connected them from the jets.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
REMOVING-REFITTING FRONT
GRILLE
4.
Raise the bonnet lid, then remove the
front grille undoing the fixing nuts shown
in the diagram.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
P4A014M02
14
Print
no.
506.670
