Fiat Brava - Starter Motor Components

To Next Page

To Previous Page

Bravo-Brava Electrical equipment

Starting

55.

Remove and lower the safety ring shown.

Remove the circlip from the rotor shaft.

Remove the free wheel with pinion from

the rotor.

When refitting, reverse the order of

the operations carried out for the re-

moval.

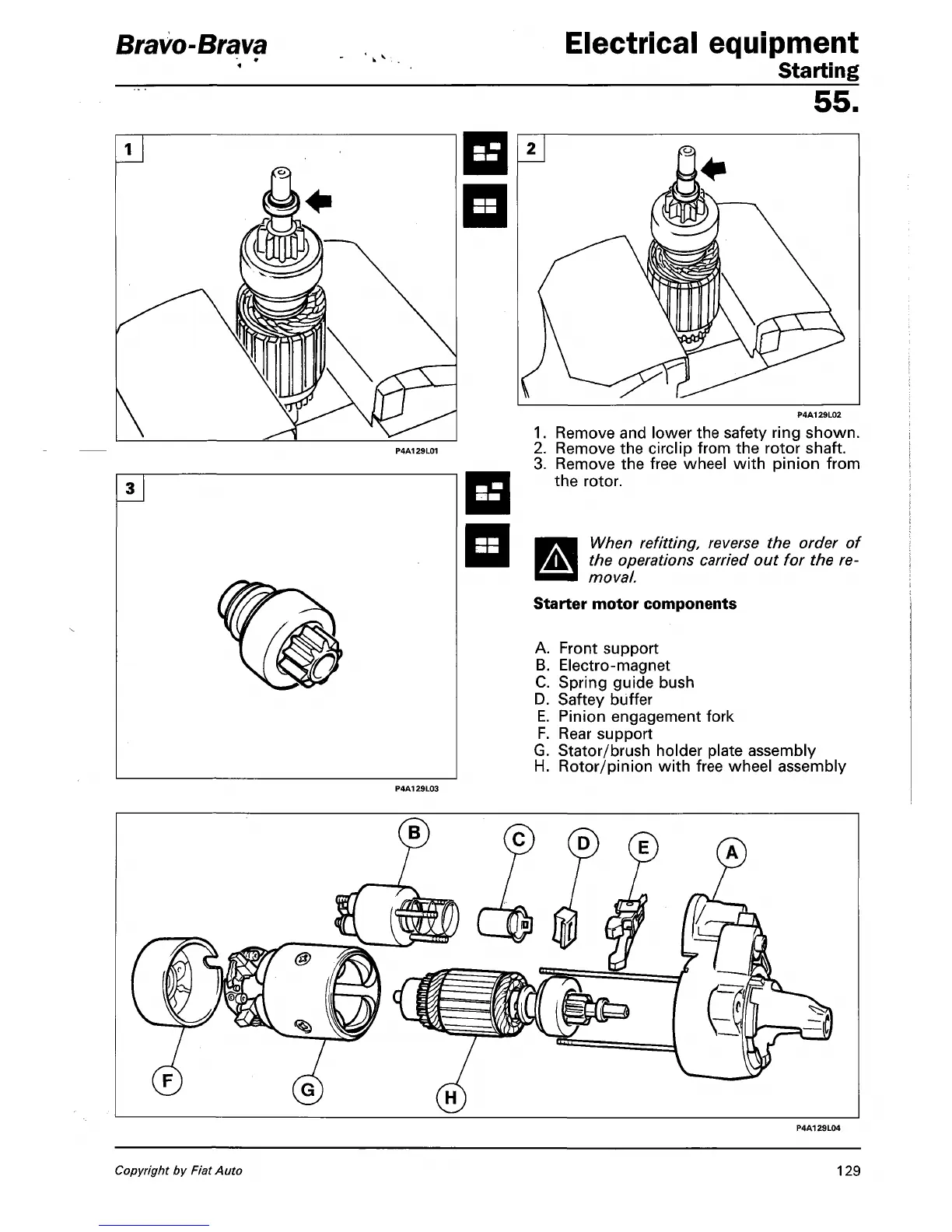

Starter motor components

A. Front support

B. Electro-magnet

C. Spring guide bush

D. Saftey buffer

E. Pinion engagement fork

F. Rear support

G. Stator/brush holder plate assembly

H. Rotor/pinion with free wheel assembly
