Fiat Brava - Version with Air Conditioner Engine Cooling System - Water Temperature Gauge

Electrical system
Connections
Bravo-Brava
'98 range
55.

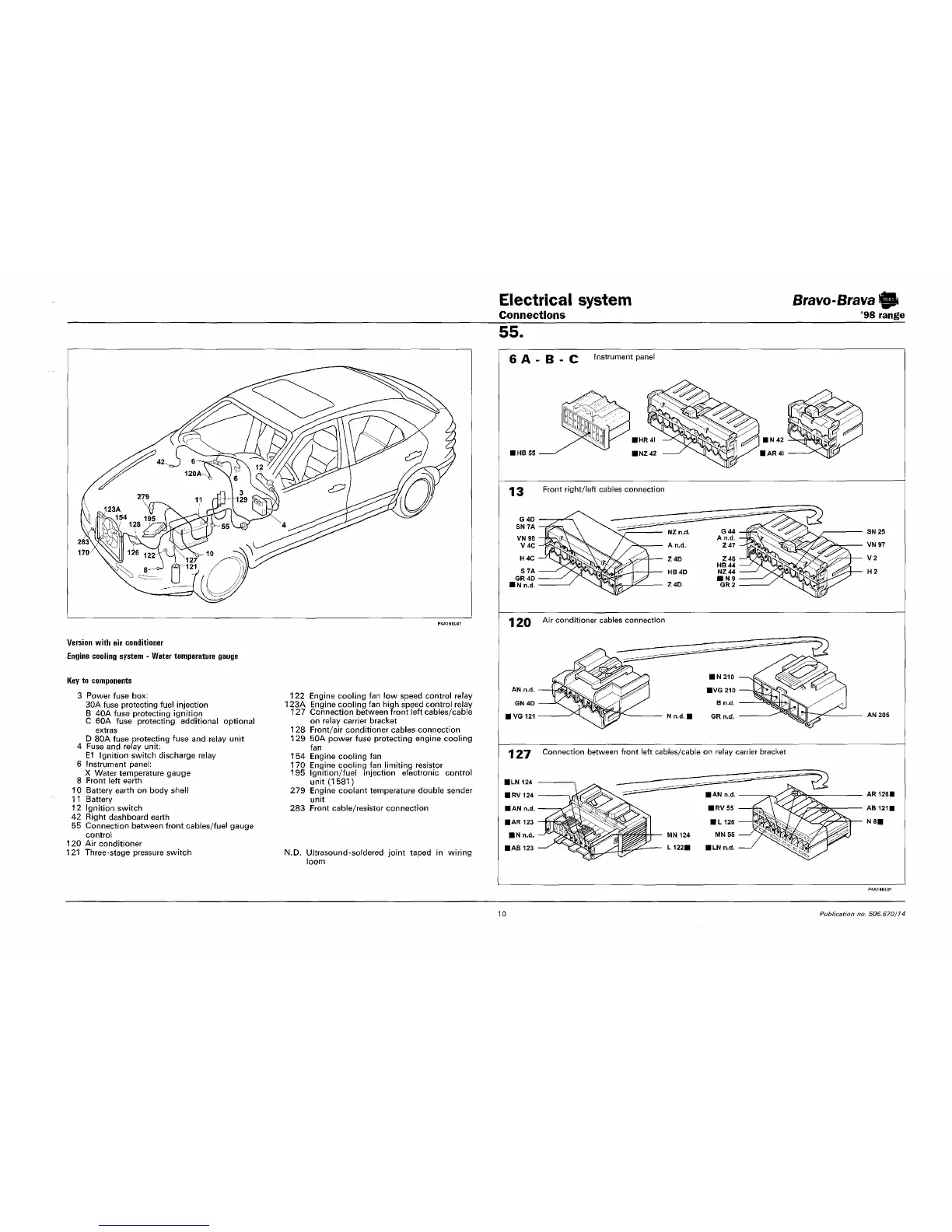

Version with air conditioner
Engine cooling system - Water temperature gauge
Key to components
3 Power fuse box:
30A fuse protecting fuel injection
B 40A fuse protecting ignition
C 60A fuse protecting additional optional
extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit:
E1 Ignition switch discharge relay
6 Instrument panel:
X Water temperature gauge
8 Front left earth
10 Battery earth on body shell
11 Battery
12 Ignition switch
42 Right dashboard earth
55 Connection between front cables/fuel gauge
control
120 Air conditioner
121 Three-stage pressure switch
1 22 Engine cooling fan low speed control relay
123A Engine cooling fan high speed control relay
127 Connection between front left cables/cable
on relay carrier bracket
1 28 Front/air conditioner cables connection
1 29 50A power fuse protecting engine cooling
fan
154 Engine cooling fan
170 Engine cooling fan limiting resistor
195 Ignition/fuel injection electronic control
unit (1581)
279 Engine coolant temperature double sender
unit
283 Front cable/resistor connection
N.D. Ultrasound-soldered joint taped in wiring
loom
6 A - B - C
Instrument panel
IHB55
13
Front right/left cables connection
120
Air conditioner cables connection
1 07 Connection between front left cables/cable on relay carrier bracket
P4A1 8EL01
10
Publication no. 506.670/74
