Bodywork
Rear tailgate
Bravo-Brava
5 P.
70-

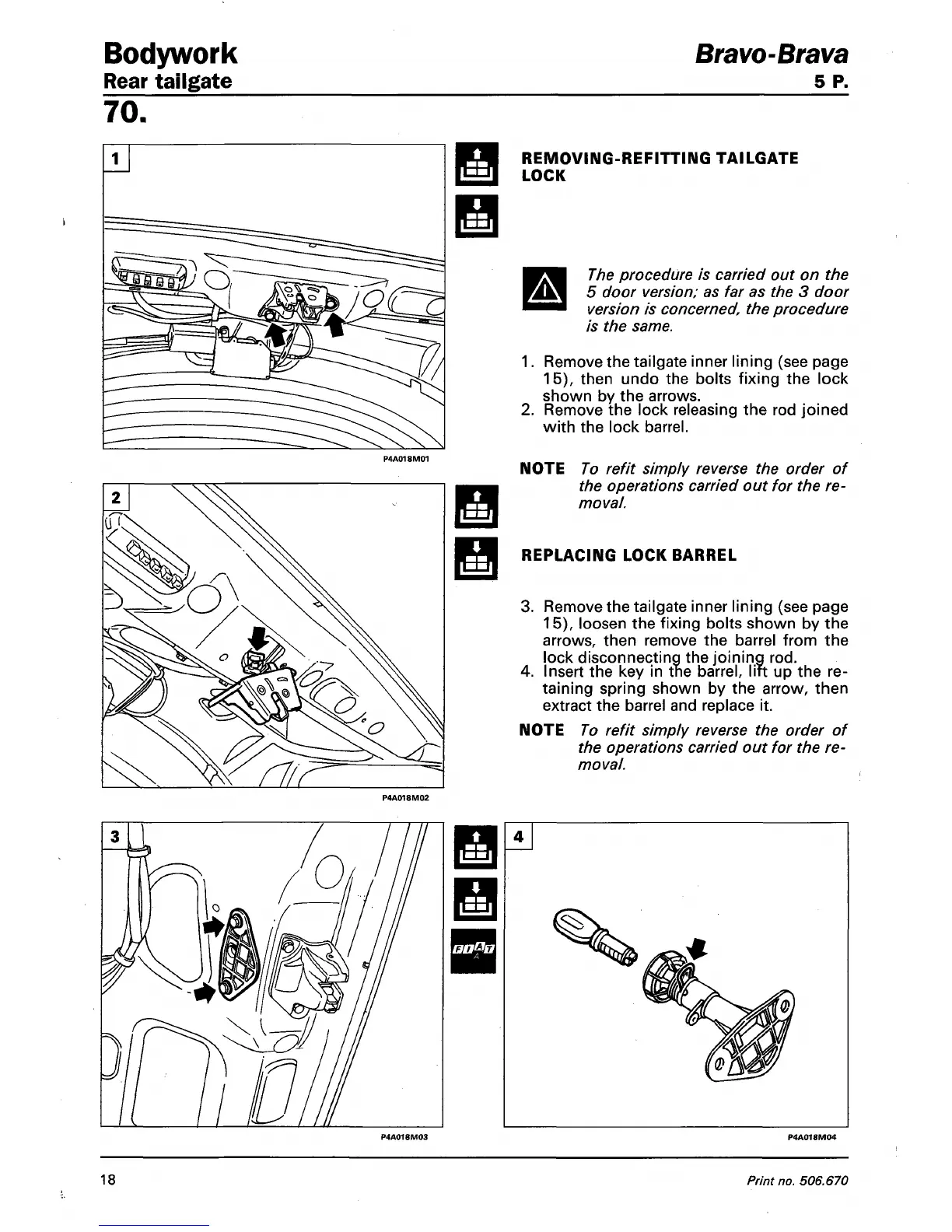

REMOVING-REFITTING TAILGATE
LOCK
The procedure is carried out on the
5 door version; as far as the 3 door
version is concerned, the procedure
is the same.
1.
Remove the tailgate inner lining (see page
15),
then undo the bolts fixing the lock
shown by the arrows.
2.
Remove the lock releasing the rod joined
with the lock barrel.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
REPLACING LOCK BARREL
3. Remove the tailgate inner lining (see page
15),
loosen the fixing bolts shown by the
arrows, then remove the barrel from the
lock disconnecting the joining rod.
4.
Insert the key in the barrel, lift up the re-
taining spring shown by the arrow, then
extract the barrel and replace it.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
