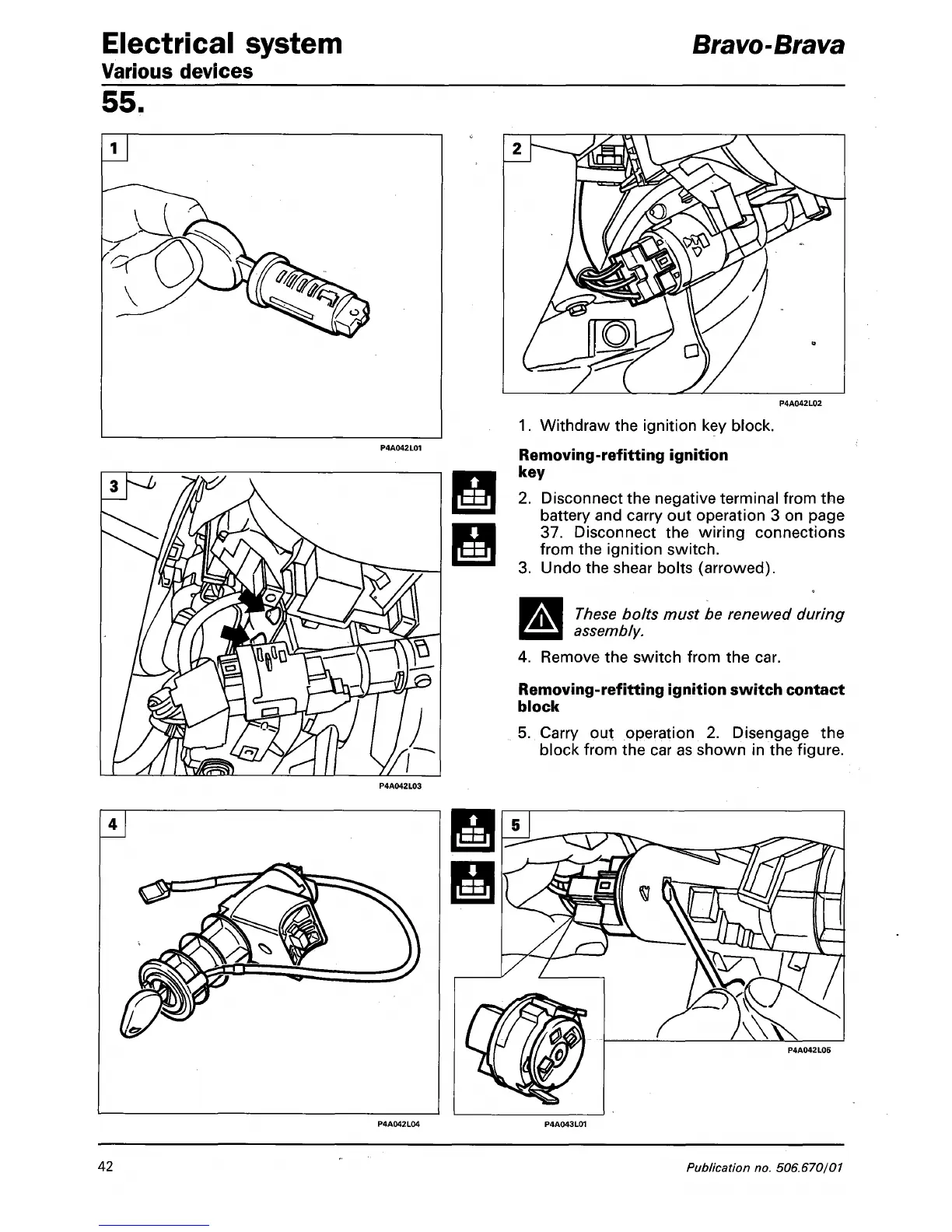

Fiat Brava - Removing-Refitting Ignition Key; Removing-Refitting Ignition Switch Contact Block

Electrical system
Various devices
Bravo-Brava
55.
3 ^
J^PzjfmgAffi
I&^MW'
1 rra^^ / r
g==i
¥
T^\P
ff)
1. Withdraw the ignition key block.
Removing-refitting ignition
key
2. Disconnect the negative terminal from the
battery and carry out operation 3 on page
37. Disconnect the wiring connections
from the ignition switch.
3. Undo the shear bolts (arrowed).
JMI These bolts must be renewed during
%mmm assembly.
4. Remove the switch from the car.
Removing-refitting ignition switch contact
block
5. Carry out operation 2. Disengage the
block from the car as shown in the figure.
4
fly
\&S
iw^
v^
i ^ yj$r ))
42
Publication no. 506.670/01
