Bravo-Btava
Electrical system
Various devices
55.

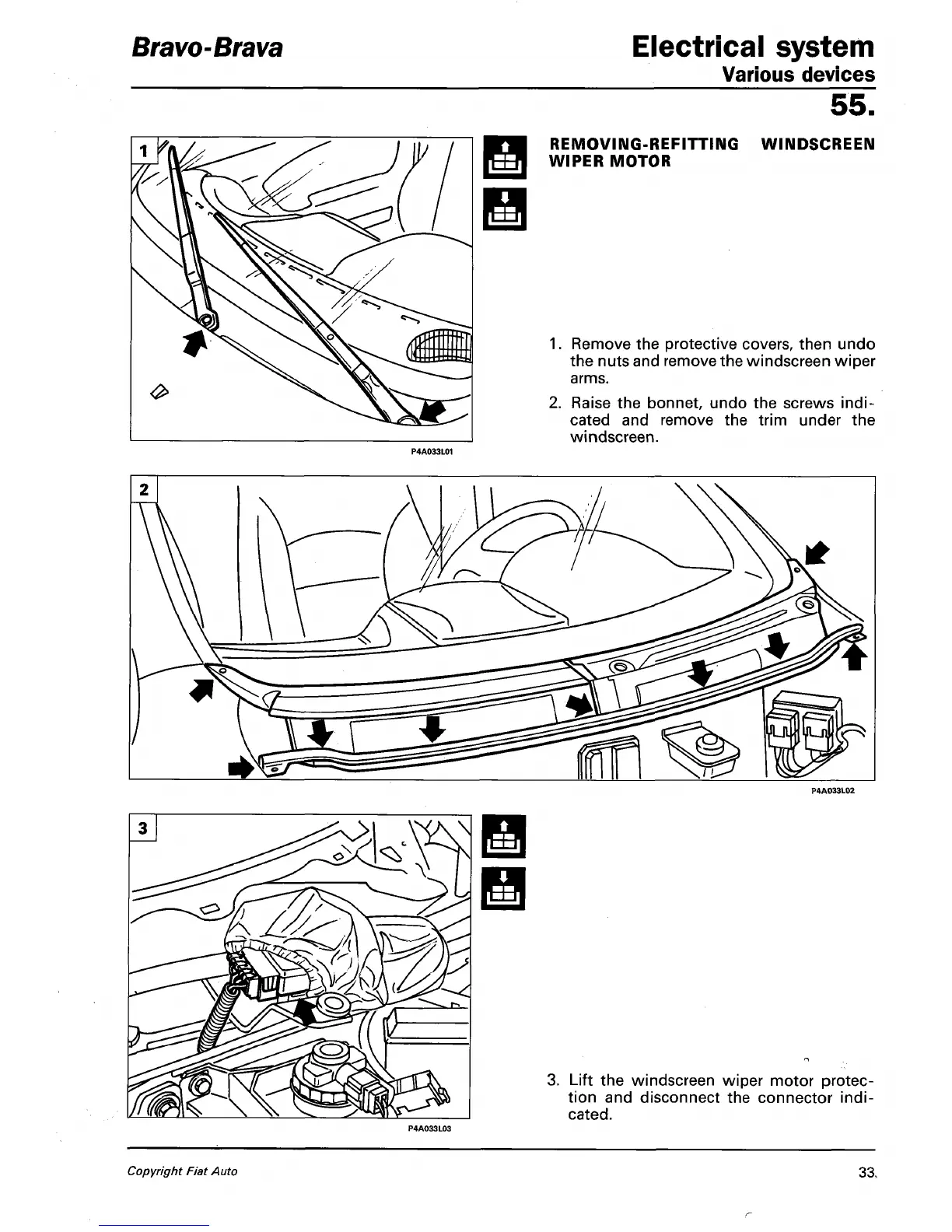

REMOVING-REFITTING
WIPER MOTOR
WINDSCREEN
1.
Remove the protective covers, then undo
the nuts and remove the windscreen wiper
arms.
2.
Raise the bonnet, undo the screws
indi-
cated and remove the trim under the
windscreen.
3. Lift the windscreen wiper motor protec-
tion and disconnect the connector
indi-
cated.
Copyright Fiat Auto
33,
