Btavo-Brava Bodywork
Window glasses
70.
REPLACING FRONT WINDOW GLASS (WINDSCREEN)
Removing vehicle trims and protection

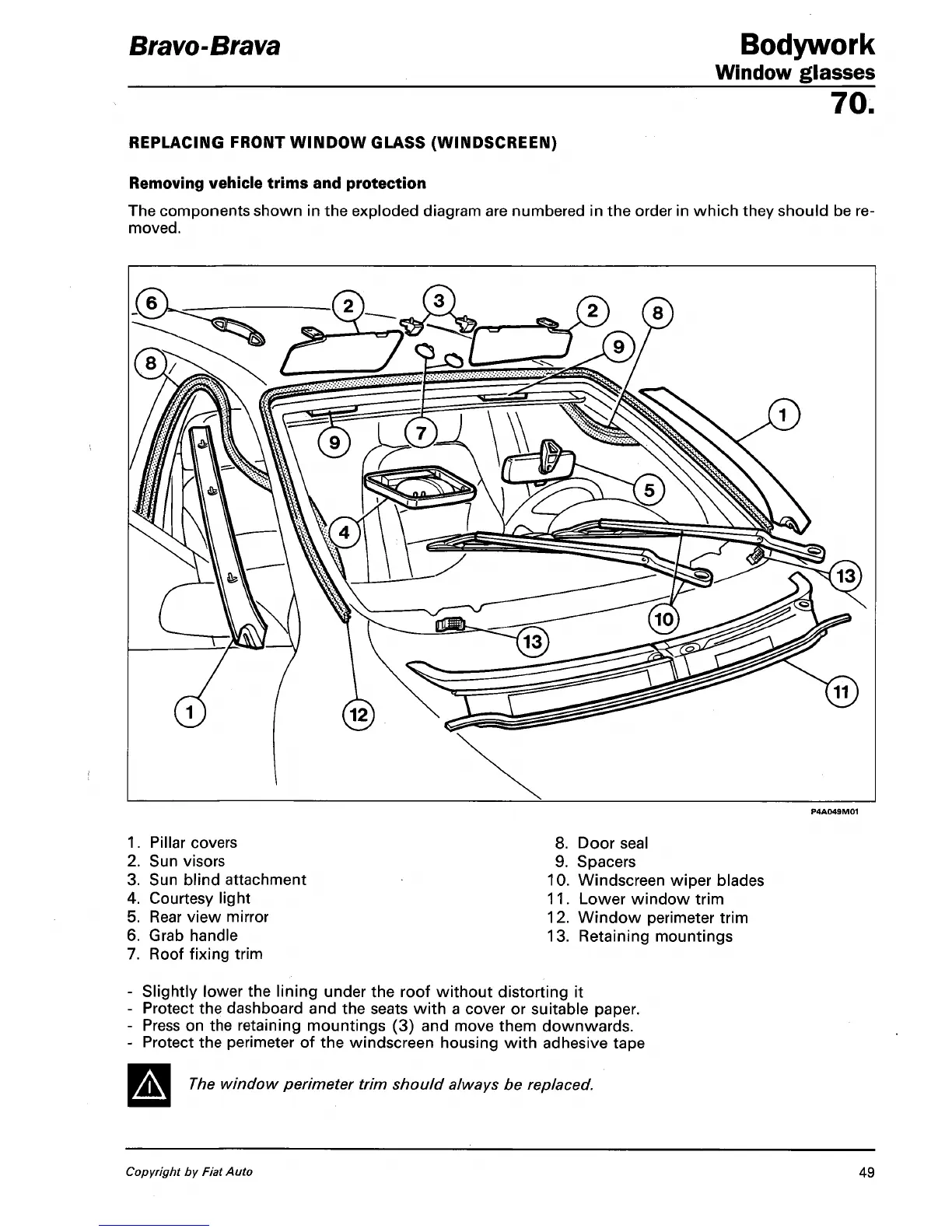

The components shown in the exploded diagram are numbered in the order in which they should be re-
moved.
P4AO49M01
1.
Pillar covers
2.
Sun visors
3. Sun blind attachment
4.
Courtesy light
5. Rear view mirror
6. Grab handle
7. Roof fixing trim
8. Door seal
9. Spacers
10.
Windscreen wiper blades
11.
Lower window trim
12.
Window perimeter trim
13.
Retaining mountings
Slightly lower the lining under the roof without distorting it
Protect the dashboard and the seats with a cover or suitable paper.
Press on the retaining mountings (3) and move them downwards.
Protect the perimeter of the windscreen housing with adhesive tape
The window perimeter trim should always be replaced.
