Bravo-Btava
Bodywork
Front door
70.
P4A005M01

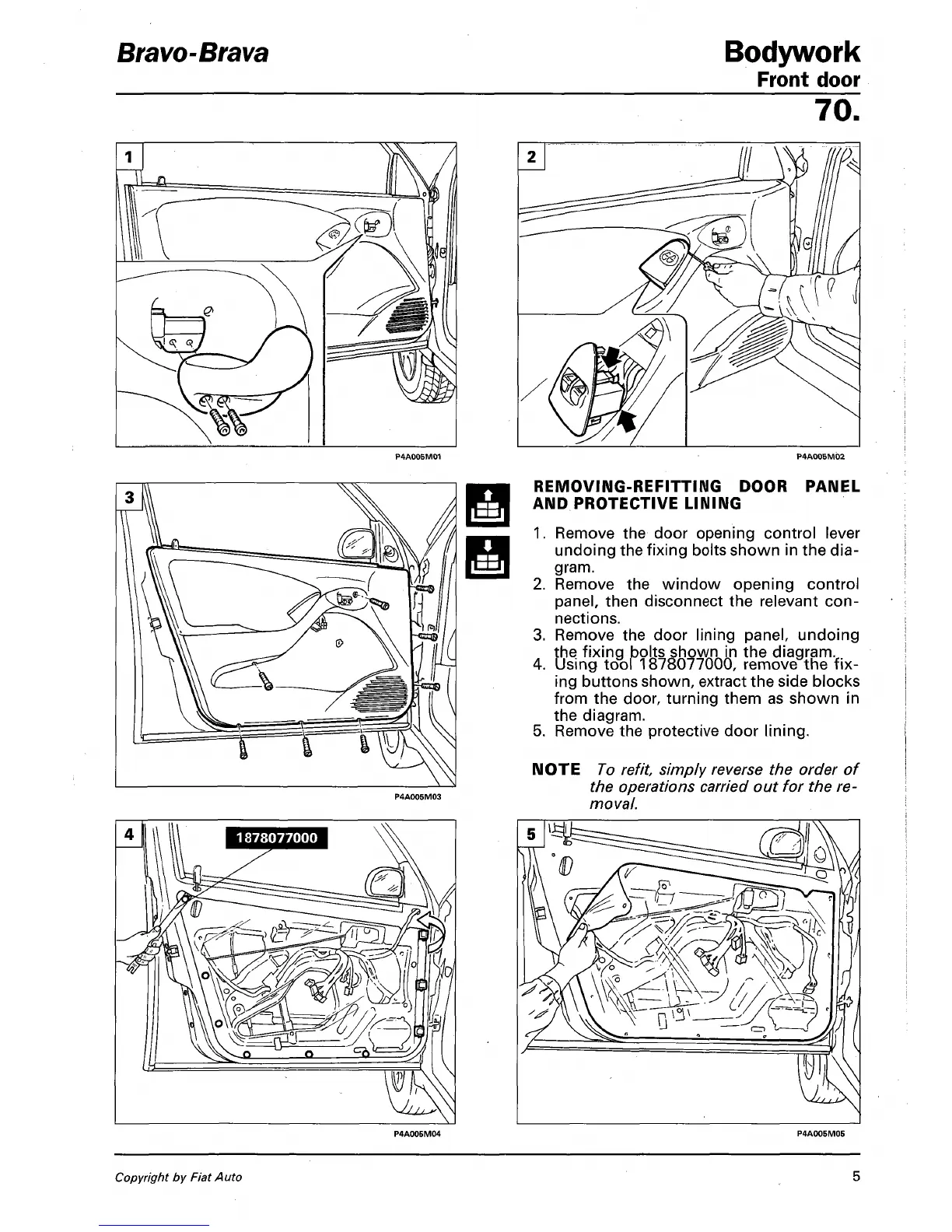

REMOVIIMG-REFITTING DOOR PANEL
AND PROTECTIVE LINING
1.
Remove the door opening control lever
undoing the fixing bolts shown in the dia-
gram.
2.
Remove the window opening control
panel,
then disconnect the relevant
con-
nections.
3. Remove the door lining panel, undoing
the fixing bolts shown in the diagram.
4.
Using tool 1878077000, remove the fix-
ing buttons shown, extract the side blocks
from the door, turning them as shown in
the diagram.
5. Remove the protective door lining.
NOTE To
refit,
simply reverse the order of
the operations carried out for the re-
moval.
Copyright
by Fiat Auto
5
