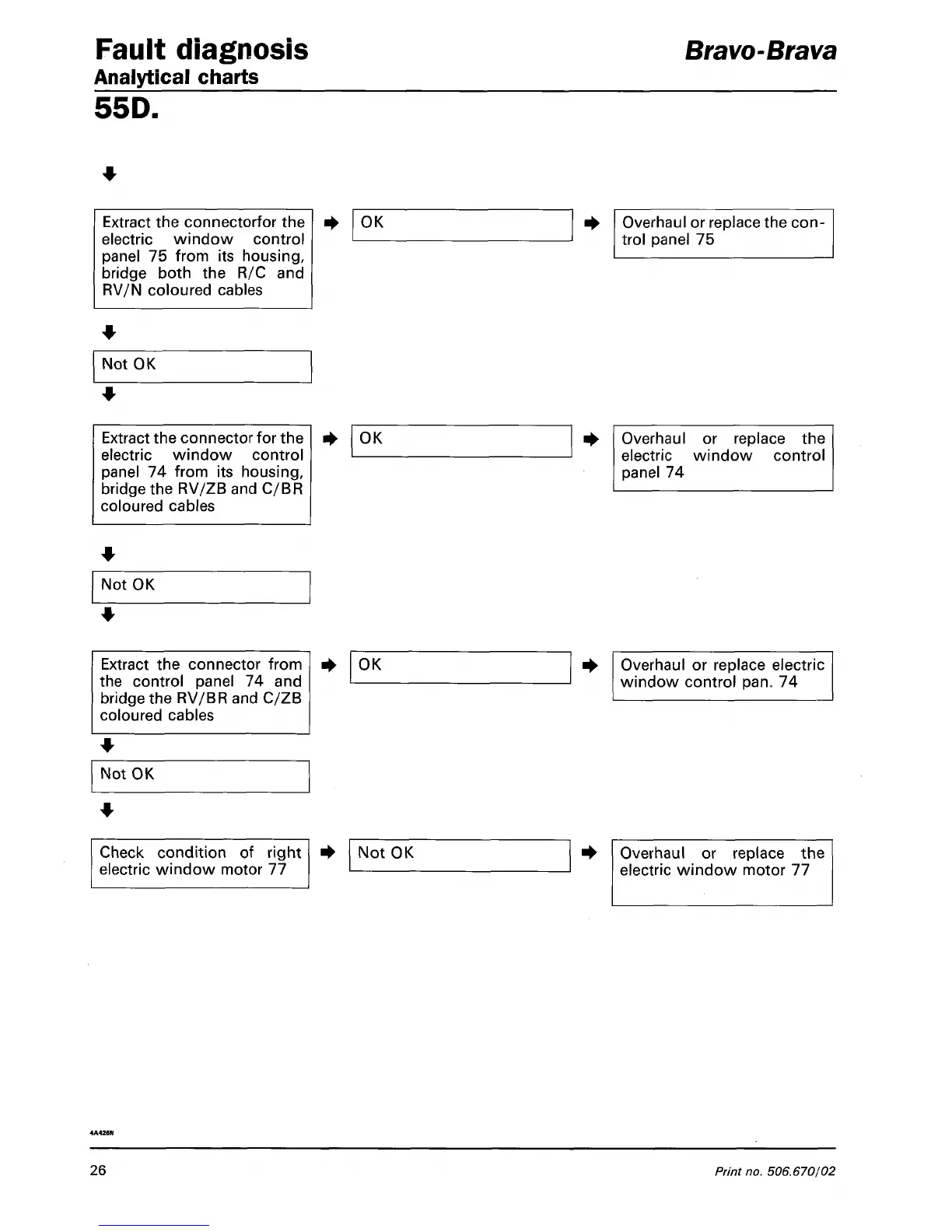

Fault diagnosis
Analytical charts
Bravo-Bmva
55D.
Extract the connectorfor the
electric window control
panel 75 from its housing,
bridge both the R/C and
RV/N coloured cables
OK Overhaul or replace the
con-
trol panel 75
Not OK
Extract the connector for the
electric window control
panel 74 from its housing,
bridge the RV/ZB and C/BR
coloured cables
OK
Overhaul or replace the
electric window control
panel 74
Not OK
Extract the connector from
the control panel 74 and
bridge the RV/BR and C/ZB
coloured cables
OK
Overhaul or replace electric
window control pan. 74
Not OK
Check condition of right
electric window motor 77
Not OK
Overhaul or replace the
electric window motor 77
26
Print
no.
506.670/02
