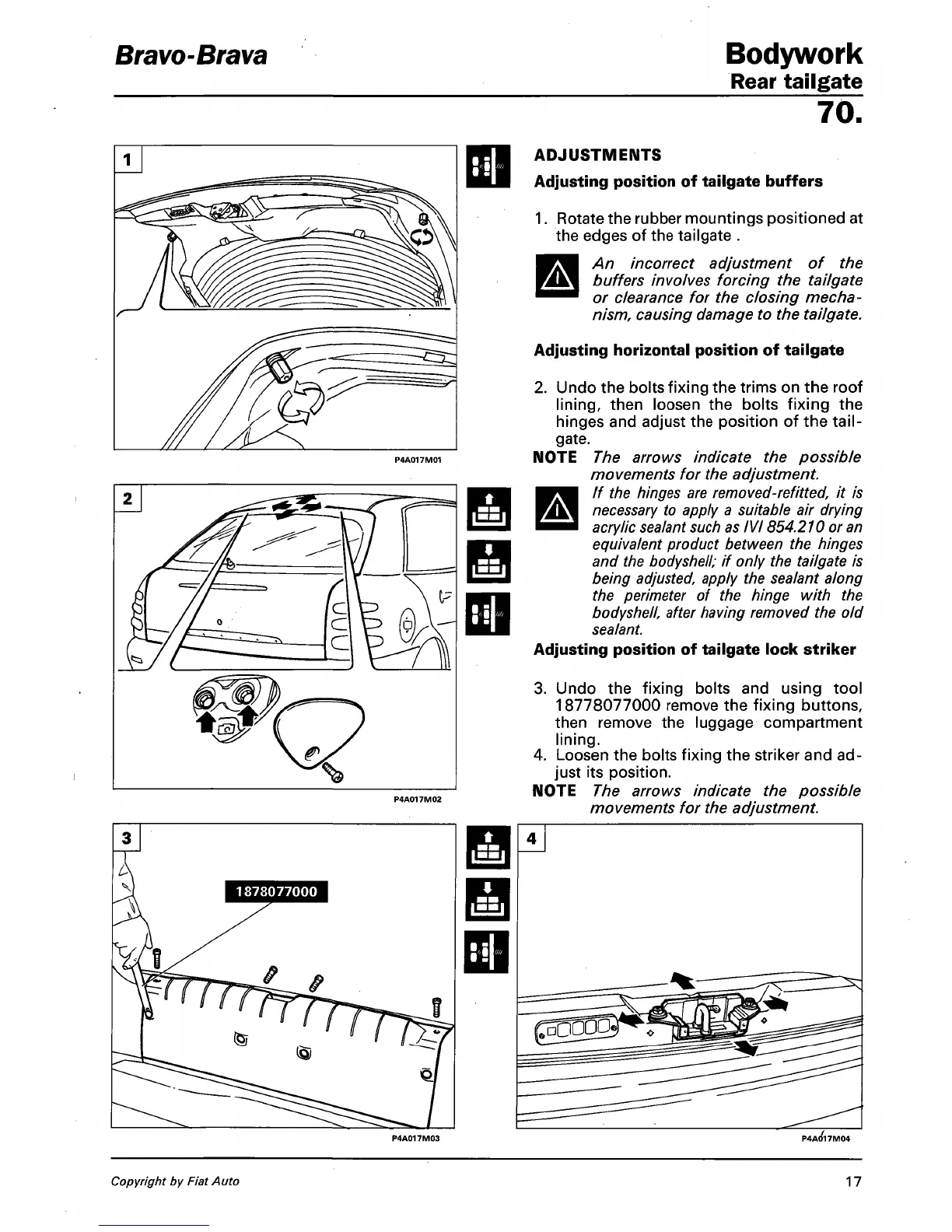

Bravo-Brava Bodywork
Rear tailgate
70.
P4A017M01
P4A017M02
ADJUSTMENTS
Adjusting position of tailgate buffers
1.
Rotate the rubber mountings positioned at
the edges of the tailgate .
An incorrect adjustment of the
buffers involves forcing the tailgate
or clearance for the closing mecha-
nism, causing damage to the tailgate.
Adjusting horizontal position of tailgate
2.
Undo the bolts fixing the trims on the roof
lining,
then loosen the bolts fixing the
hinges and adjust the position of the
tail-
gate.
NOTE The arrows indicate the possible
movements for the adjustment.
_ _ // the hinges
are
removed-refitted,
it is
Pw|
necessary
to apply a suitable air drying
acrylic sealant such as
IVI 854.210 or
an
equivalent
product between the hinges
and the
bodyshell;
if only the tailgate is
being
adjusted,
apply the sealant along
the perimeter of the hinge with the
bodyshell, after
having
removed the old
sealant.
Adjusting position of tailgate lock striker
Undo the fixing bolts and using tool
18778077000 remove the fixing buttons,
then remove the luggage compartment
lining.
Loosen the bolts fixing the striker and ad-
just its position.
NOTE The arrows indicate the possible
movements for the adjustment.
P4A017M03
Copyright by Fiat Auto
17
