Electrical system
Lighting
Bravo-Brava
55.

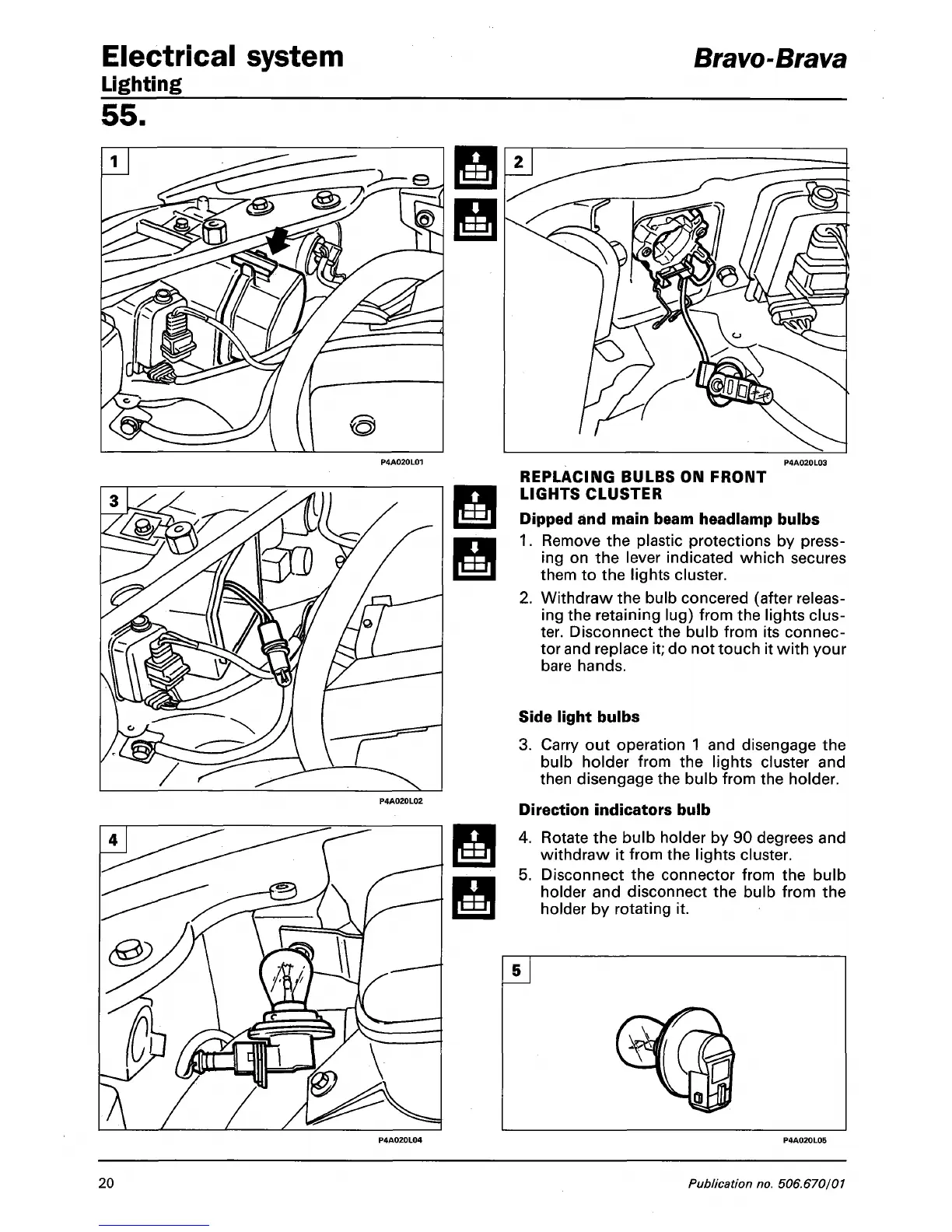

REPLACING BULBS ON FRONT
LIGHTS CLUSTER
Dipped and main beam headlamp bulbs
1.
Remove the plastic protections by press-
ing on the lever indicated which secures
them to the lights cluster.
2.
Withdraw the bulb concered (after releas-
ing the retaining lug) from the lights clus-
ter. Disconnect the bulb from its connec-
tor and replace it; do not touch it with your
bare hands.
Side light bulbs
3. Carry out operation 1 and disengage the
bulb holder from the lights cluster and
then disengage the bulb from the holder.
Direction indicators bulb
Rotate the bulb holder by 90 degrees and
withdraw it from the lights cluster.
Disconnect the connector from the bulb
holder and disconnect the bulb from the
holder by rotating it.
