Fiat Brava - Front Lights Cluster with Direction Indicator

Bravo-Brava
Electrical system
Lighting
55.

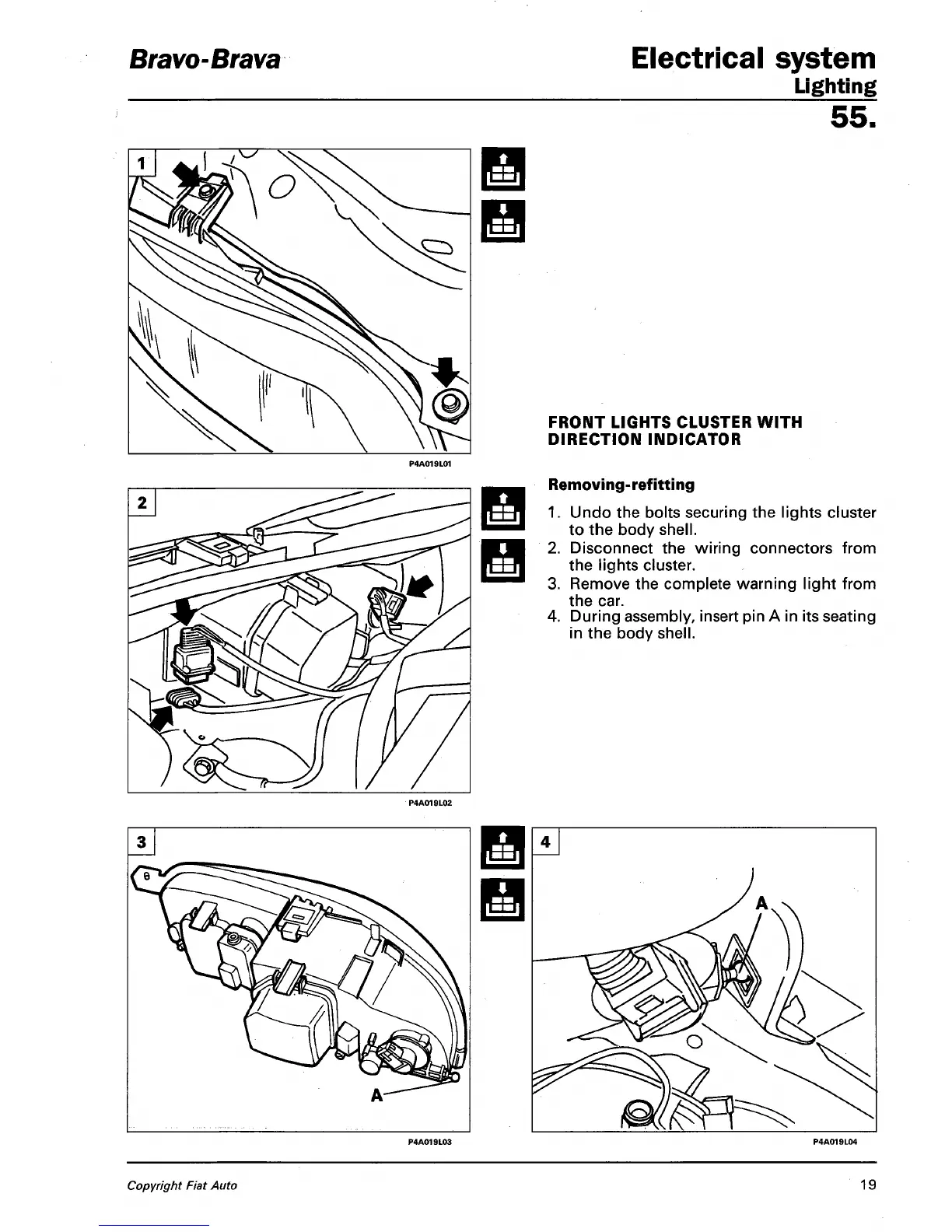

FRONT LIGHTS CLUSTER WITH
DIRECTION INDICATOR
Removing-refitting
1. Undo the bolts securing the lights cluster
to the body shell.
2. Disconnect the wiring connectors from
the lights cluster.
3. Remove the complete warning light from
the car.
4. During assembly, insert pin A in its seating
in the body shell.
Copyright Fiat Auto
19
