Fiat Brava - Removing-Refitting Rear Seat

To Next Page

To Previous Page

Bodywork

Seats

Bravo-Brava

70.

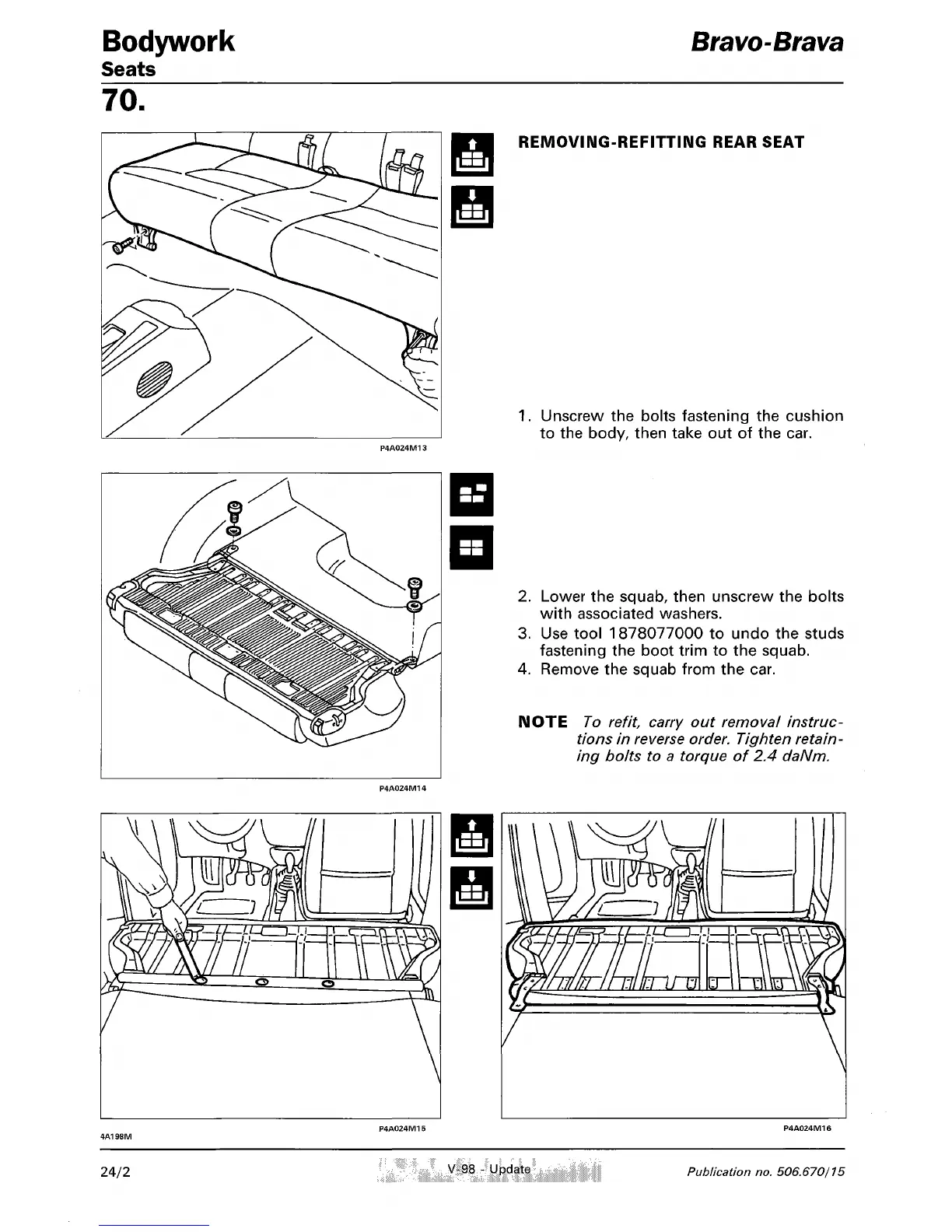

REMOVING-REFITTING REAR SEAT

Unscrew the bolts fastening the cushion

to the body, then take out of the car.

Lower the squab, then unscrew the bolts

with associated washers.

3. Use tool 1878077000 to undo the studs

fastening the boot trim to the squab.

Remove the squab from the car.

NOTE To

refit,

carry out removal instruc-

tions in reverse

order.

Tighten retain-

ing bolts to a torque of 2.4 da/Mm.

P4A024M16

24/2

V-98 - Update

Publication no. 506.670/15
