Bravo-Brava Bodywork
Sun roof
70.
REMOVING-RE FITTING COMPLETE ROOF
After removing the trim for the internal components (see previous page), proceed with the removal of
the complete roof, following the instructions given below:

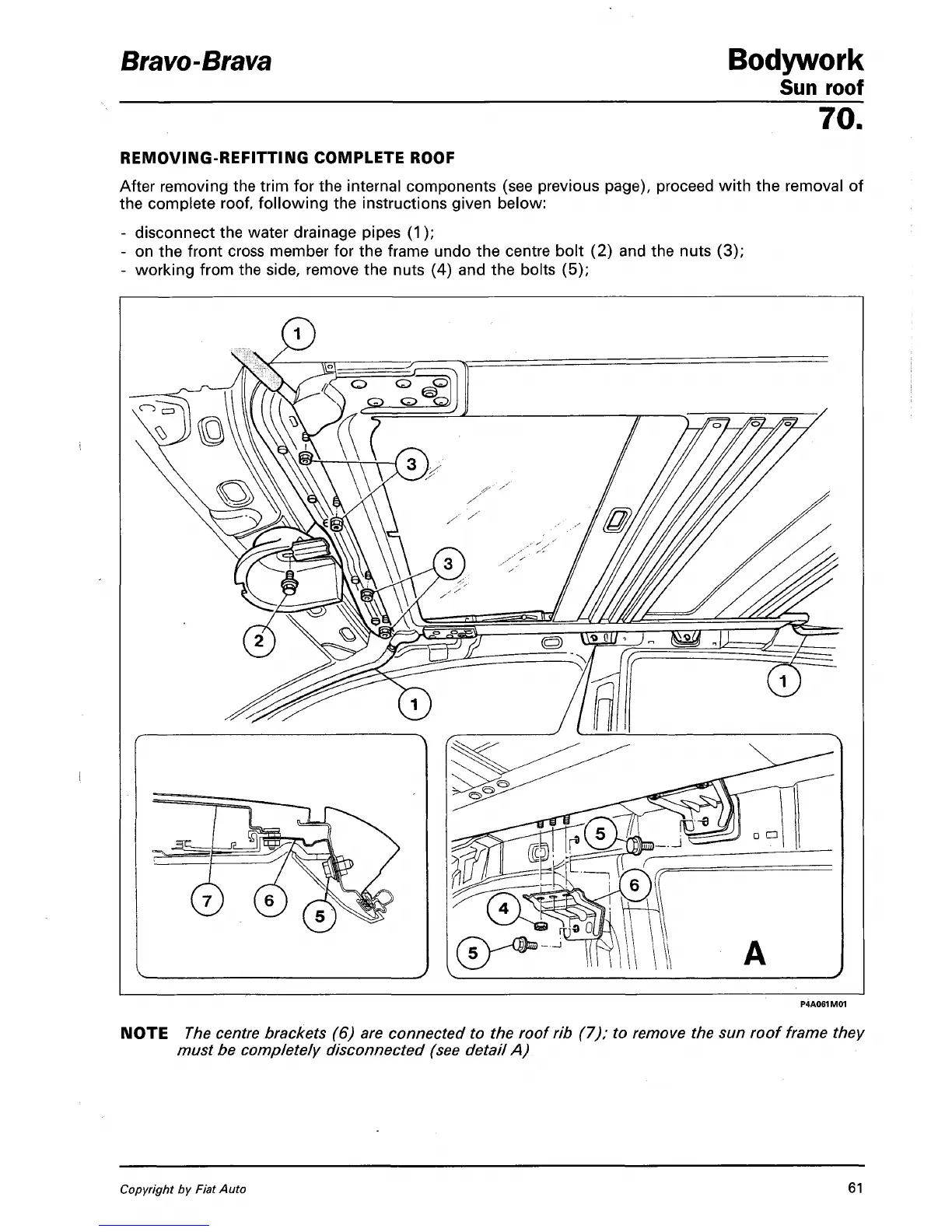

- disconnect the water drainage pipes (1);
- on the front cross member for the frame undo the centre bolt (2) and the nuts (3);
- working from the side, remove the nuts (4) and the bolts (5);
NOTE The centre brackets (6) are connected to the roof rib (7); to remove the sun roof frame they
must be completely disconnected (see detail A)
