Bodywork
Sun roof
Bravo-Brava
70.
DISMANTLING-REASSEMBLING COMPLETE ROOF
To dismantle the sun roof, proceed as described below:
- Remove the crystal (1) from the pullies (6) through the bolts (9). Remove the rain gutter (8). Re-
move the sun visor panel (2) releasing it from the guides (see detail A).
- Remove the electric motor (3).
- Remove the terminals (4) (water drainage) stuck with Betaseal type polyurethane sealant.
- Undo the two end of travel bolts (5).
- Extract the pullies (6) after having moved them into theend of travel position.
- Remove the bowden cable (10).
- Remove the deflector (7).

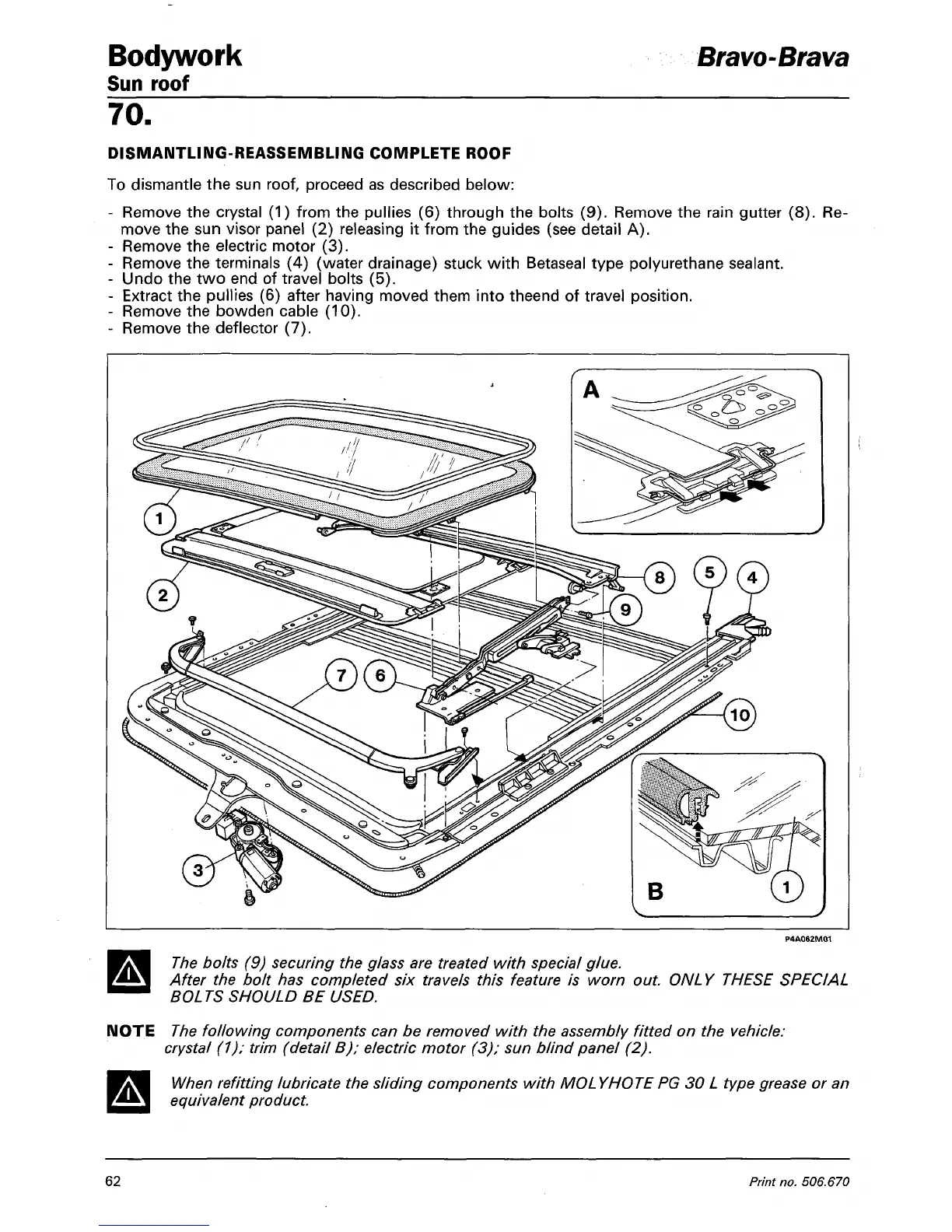

P4A062M01
BM The bolts (9) securing the glass are treated with special glue.
M^ After the bolt has completed six travels this feature is worn out. ONLY THESE SPECIAL
™"
BOL
TS
SHOULD BE USED.
NOTE The following components can be removed with the assembly fitted on the vehicle:
crystal (1); trim (detail B); electric motor (3); sun blind panel (2).
R« When refitting lubricate the sliding components with MOL YHOTE PG 30 L type grease or an
V**^ equivalent product.
