Bodywork
Front door
Bravo-Brava
70.

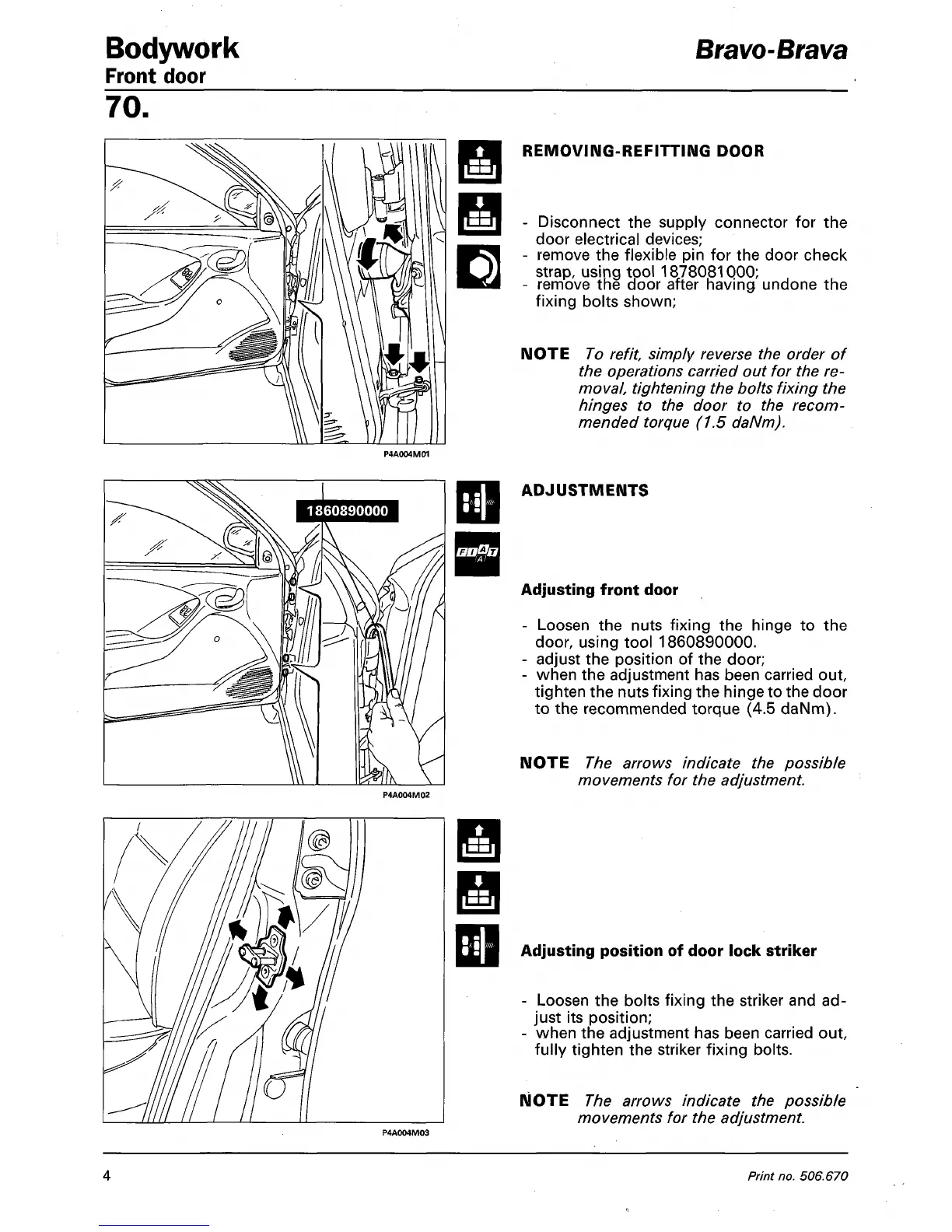

REMOVING-REFITTING DOOR
Disconnect the supply connector for the
door electrical devices;
remove the flexible pin for the door check
strap, using tool 1878081000;
remove the door after having undone the
fixing bolts shown;
NOTE To refit, simply reverse the order of
the operations carried out for the re-
moval, tightening the bolts fixing the
hinges to the door to the recom-
mended torque (1.5 daNm).
ADJUSTMENTS
Adjusting front door
- Loosen the nuts fixing the hinge to the
door, using tool 1860890000.
- adjust the position of the door;
- when the adjustment has been carried out,
tighten the nuts fixing the hinge to the door
to the recommended torque (4.5 daNm).
NOTE The arrows indicate the possible
movements for the adjustment.
Adjusting position of door lock striker
- Loosen the bolts fixing the striker and ad-
just its position;
- when the adjustment has been carried out,
fully tighten the striker fixing bolts.
NOTE The arrows indicate the possible
movements for the adjustment.
4
Print no. 506.670
