Electrical equipment
Air bag
Bravo-Brava
S.
P4A110L06
1.

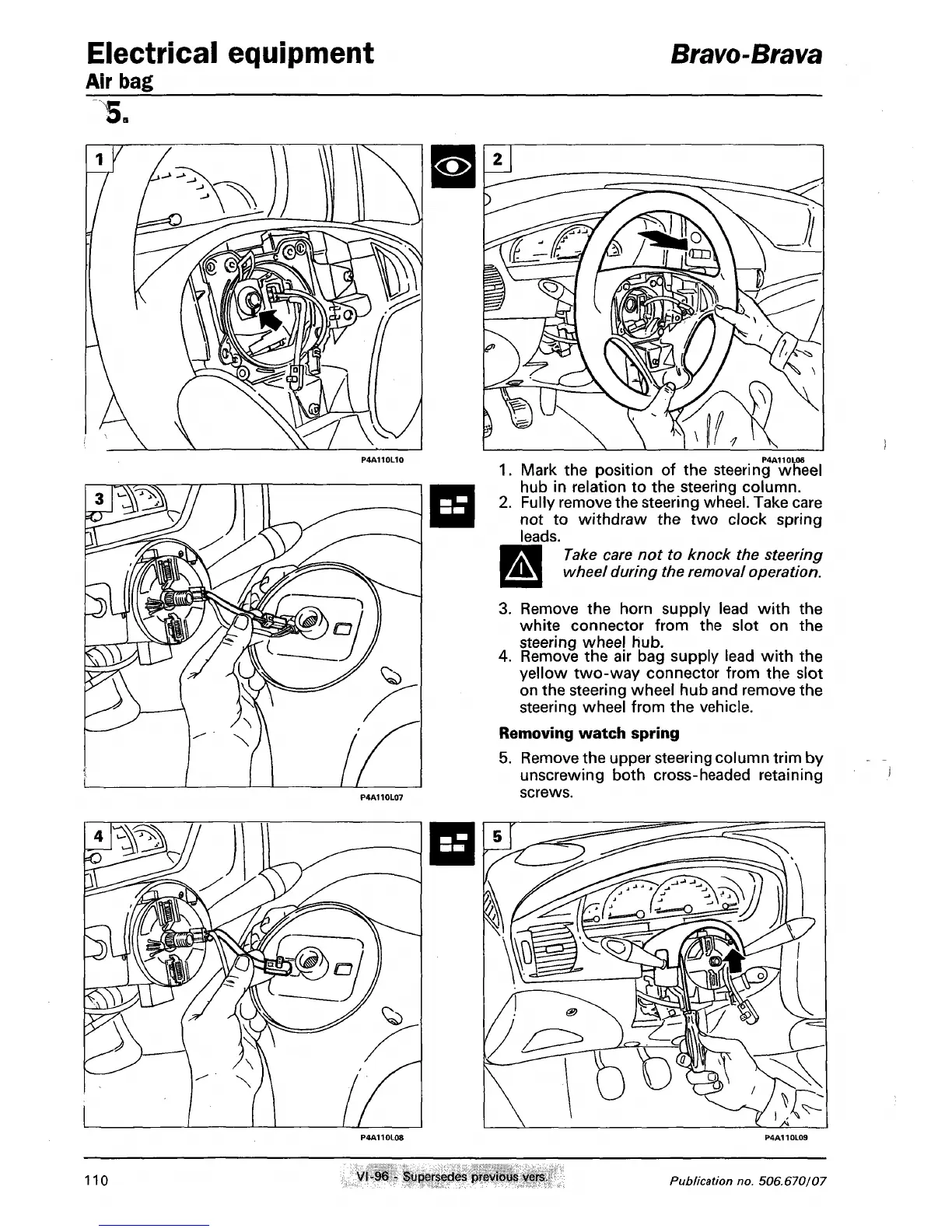

Mark the position of the steering wheel
hub in relation to the steering column.
2.
Fully remove the steering wheel. Take care
not to withdraw the two clock spring
leads.
Kjjfl Take care not to knock the steering
^Q^
wheel during the removal operation.
3. Remove the horn supply lead with the
white connector from the slot on the
steering wheel hub.
4.
Remove the air bag supply lead with the
yellow two-way connector from the slot
on the steering wheel hub and remove the
steering wheel from the vehicle.
Removing watch spring
5. Remove the upper steering column trim by
unscrewing both cross-headed retaining
screws.
110
VI-96 - Supersedes previous vers.
Publication no. 506.670/07
