Bodywork
Bumpers
Bravo-Brava
5 P.
70.

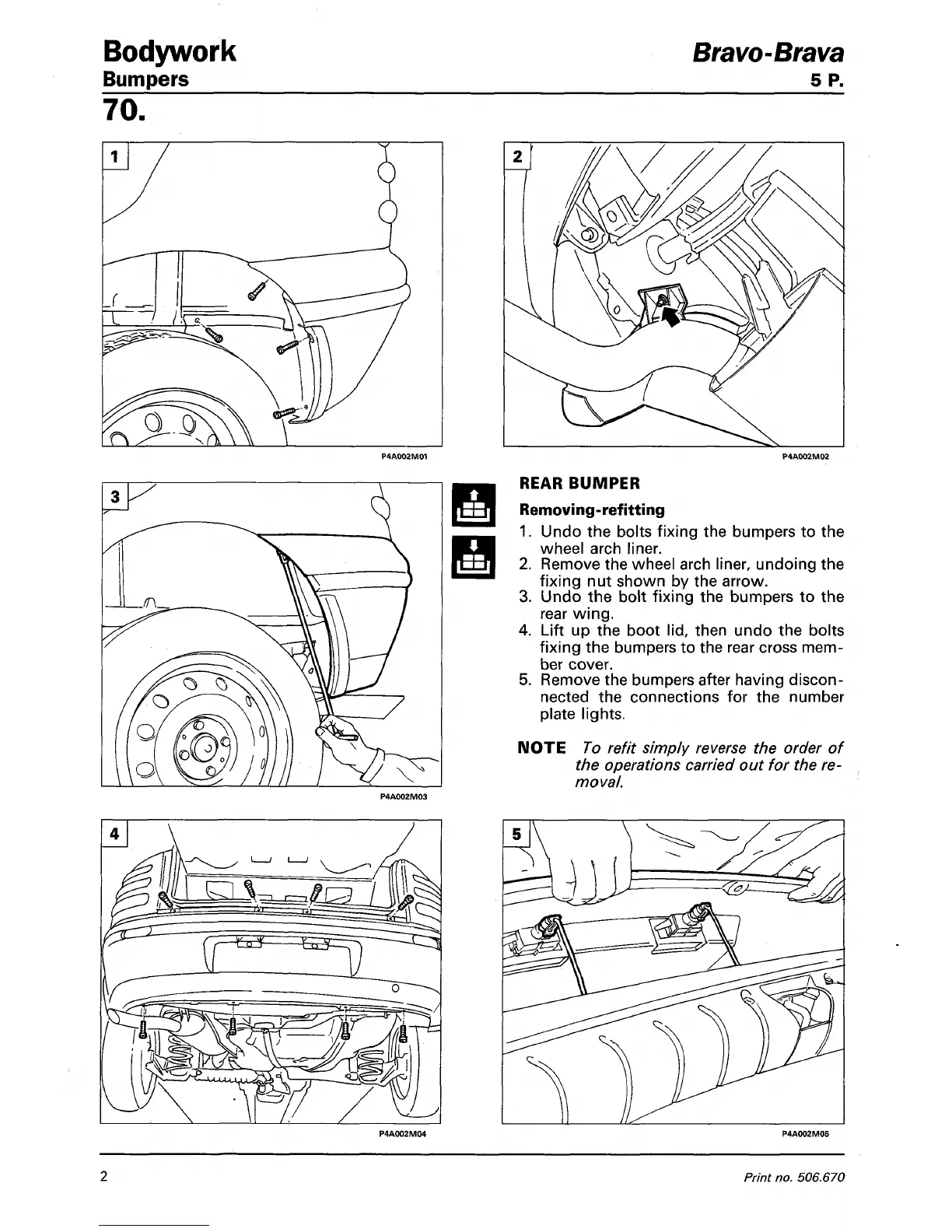

REAR BUMPER
Removing-refitting
1.
Undo the bolts fixing the bumpers to the
wheel arch liner.
2.
Remove the wheel arch liner, undoing the
fixing nut shown by the arrow.
3. Undo the bolt fixing the bumpers to the
rear wing.
4.
Lift up the boot lid, then undo the bolts
fixing the bumpers to the rear cross mem-
ber cover.
5. Remove the bumpers after having discon-
nected the connections for the number
plate lights.
IMOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
