Fiat Brava - Body Shell; Diagram for Checking the Underbody

To Next Page

To Previous Page

Bravo-Brava

Bodywork

Body shell

70.

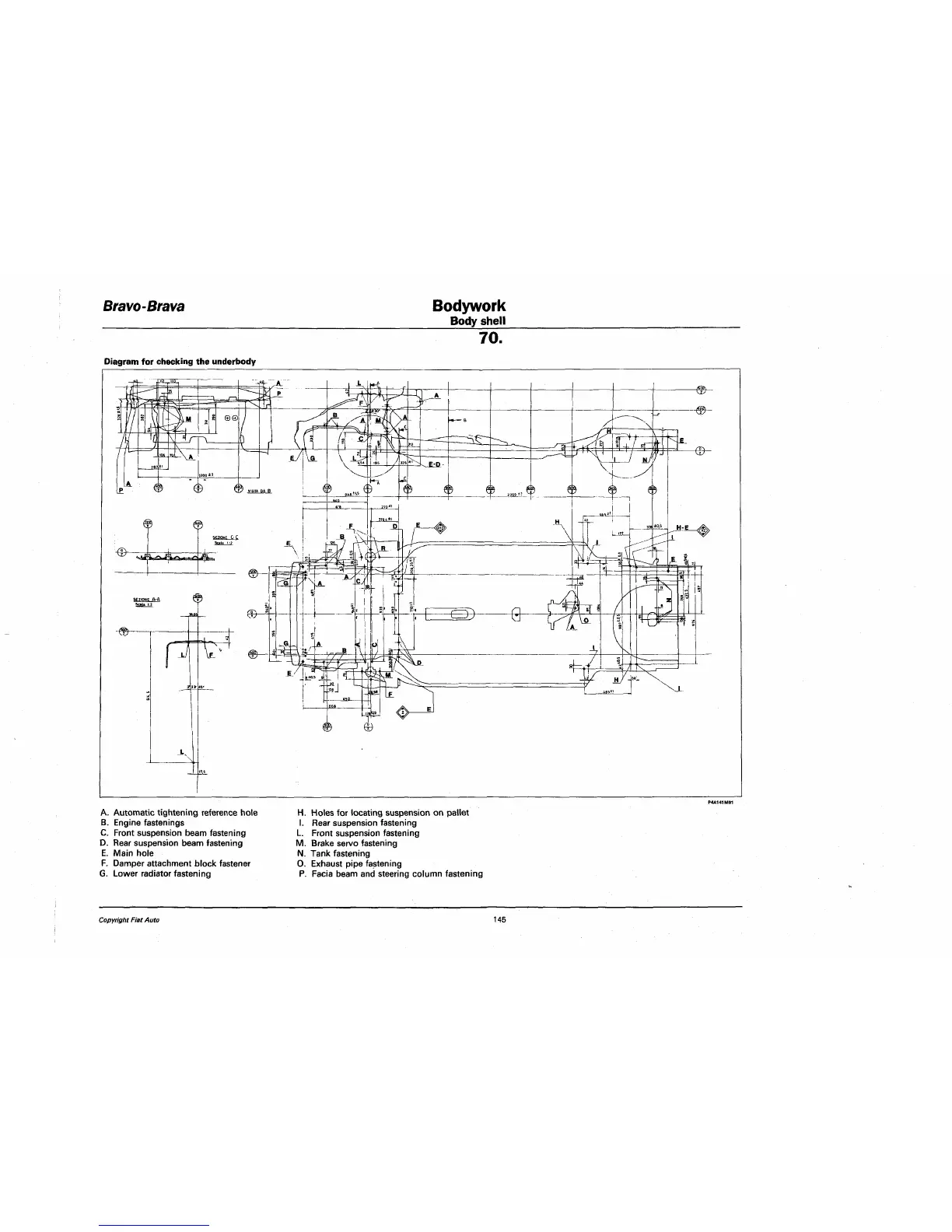

Diagram for checking the underbody

P4A141MD1

A. Automatic tightening reference hole H. Holes for locating suspension on pallet

B. Engine fastenings I. Rear suspension fastening

C. Front suspension beam fastening L. Front suspension fastening

D. Rear suspension beam fastening M. Brake servo fastening

E. Main hole N. Tank fastening

F. Damper attachment block fastener O. Exhaust pipe fastening

G. Lower radiator fastening P. Facia beam and steering column fastening
