Bodywork
Seat belt pre-tensioner
Bravo-Brava
70.

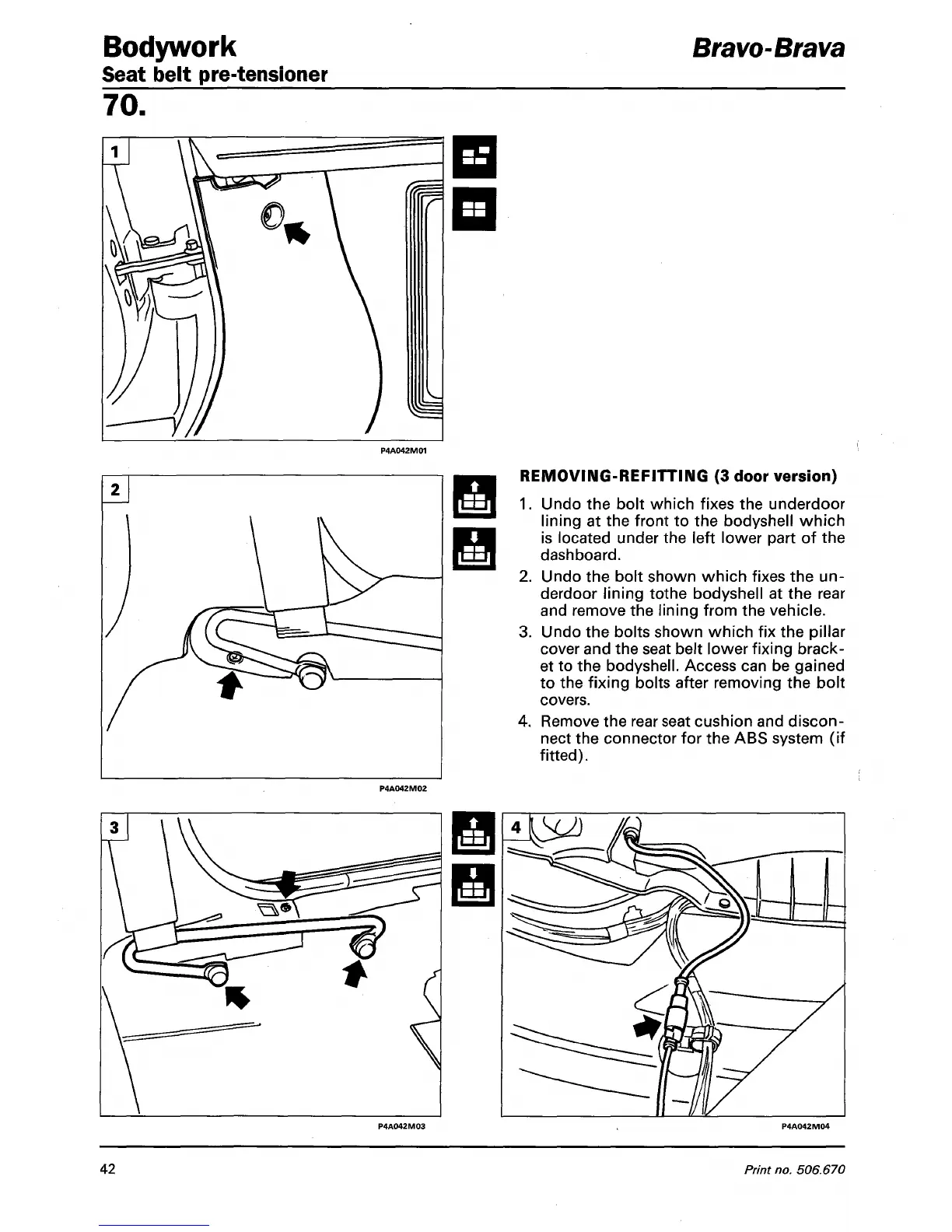

REMOVIIMG-REFITTING (3 door version)
1.
Undo the bolt which fixes the underdoor
lining at the front to the bodyshell which
is located under the left lower part of the
dashboard.
2.
Undo the bolt shown which fixes the un-
derdoor lining tothe bodyshell at the rear
and remove the lining from the vehicle.
3. Undo the bolts shown which fix the pillar
cover and the seat belt lower fixing brack-
et to the bodyshell. Access can be gained
to the fixing bolts after removing the bolt
covers.
4.
Remove the rear seat cushion and discon-
nect the connector for the ABS system (if
fitted).
42
Print no. 506.670
