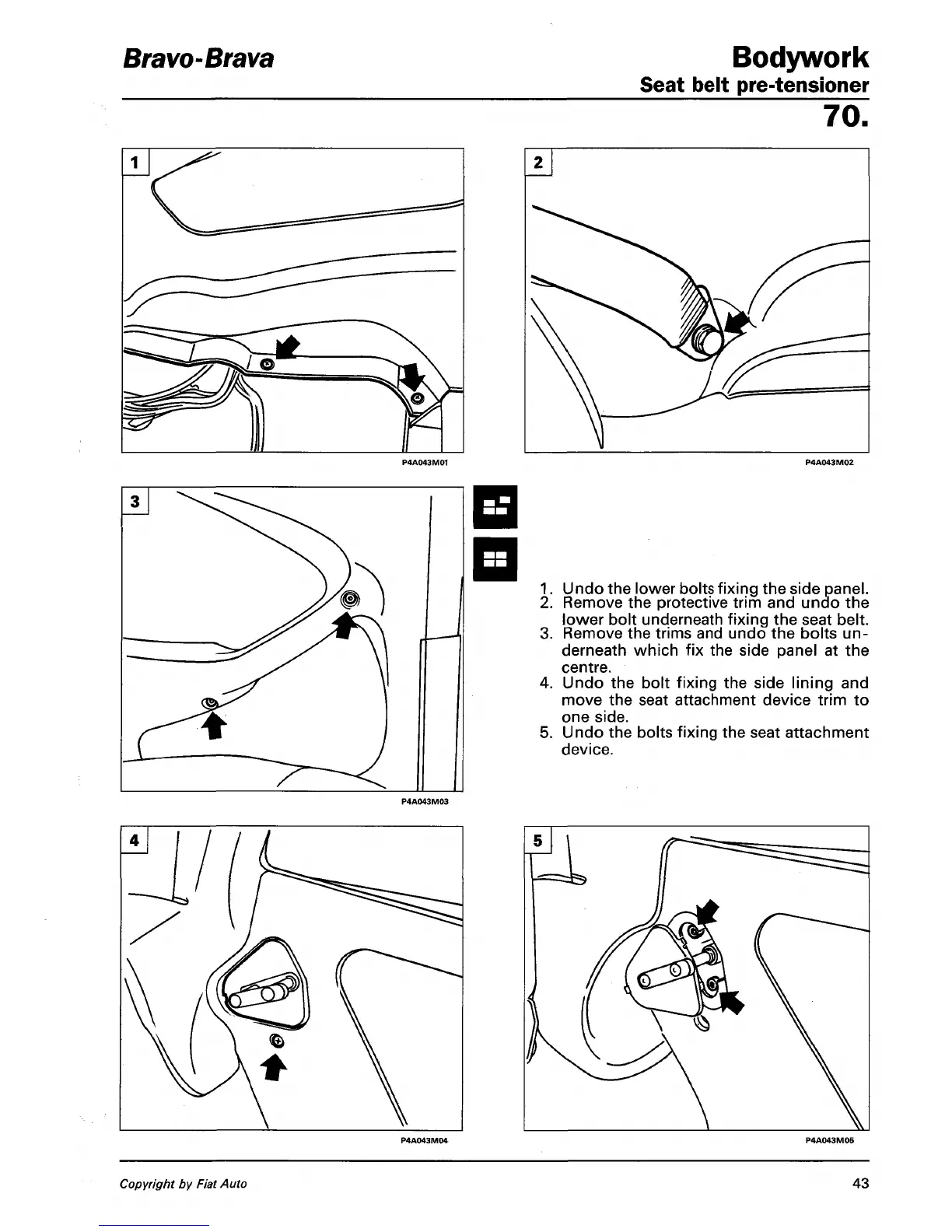

Bravo-Brava
Bodywork
Seat belt pre-tensioner
70.
1.
2.
3.
4.
Undo the lower bolts fixing the side panel.
Remove the protective trim and undo the
lower bolt underneath fixing the seat belt.
Remove the trims and undo the bolts un-
derneath which fix the side panel at the
centre.
Undo the bolt fixing the side lining and
move the seat attachment device trim to
one side.
Undo the bolts fixing the seat attachment
device.
P4A043M03
Copyright by
Fiat
Auto
43
