Bravo-Brava
Electrical equipment
Radio system
55.

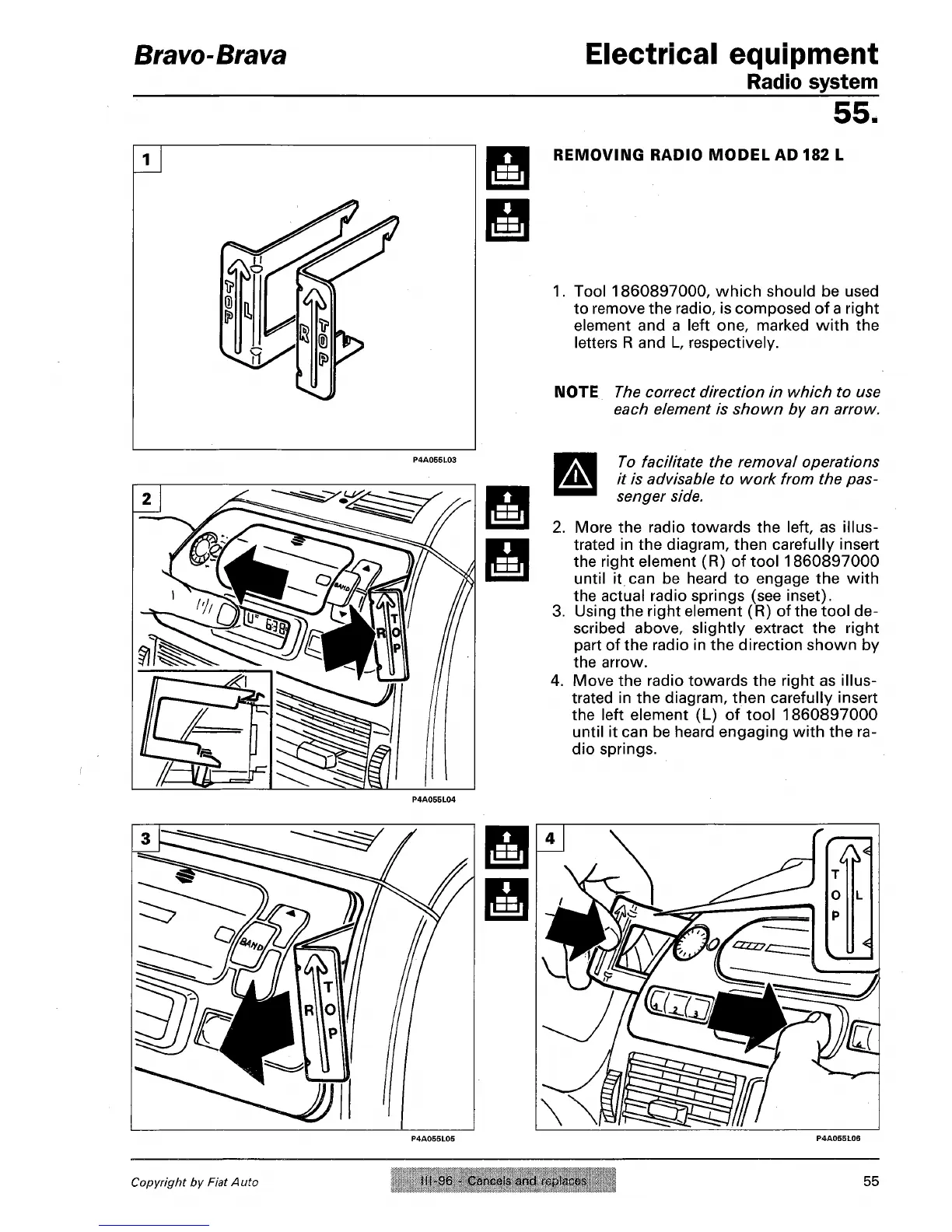

REMOVING RADIO MODEL AD 182 L
1.
Tool 1860897000, which should be used
to remove the radio, is composed of
a
right
element and a left one, marked with the
letters R and L, respectively.
NOTE The correct direction in which to use
each element is shown by an arrow.
To facilitate the removal operations
it is advisable to work from the pas-
senger side.
More the radio towards the left, as illus-
trated in the diagram, then carefully insert
the right element (R) of tool 1860897000
until it can be heard to engage the with
the actual radio springs (see inset).
Using the right element (R) of the tool de-
scribed above, slightly extract the right
part of the radio in the direction shown by
the arrow.
Move the radio towards the right as illus-
trated in the diagram, then carefully insert
the left element (L) of tool 1860897000
until it can be heard engaging with the ra-
dio springs.
Copyright by Fiat Auto
III-96 - Cancels and ic.pl.icus
55
