Electrical system
Various devices
Bravo-Brava
55.

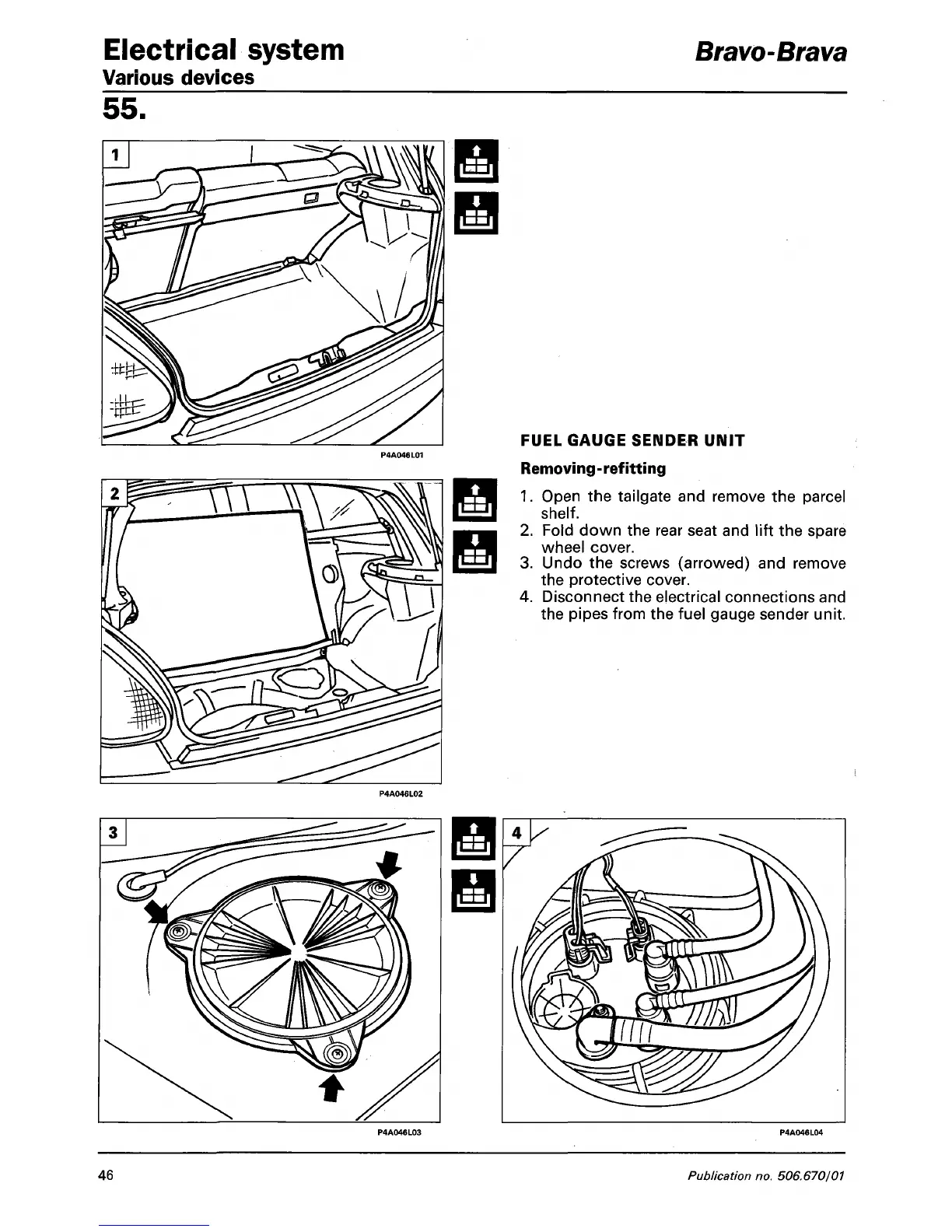

FUEL GAUGE SENDER UNIT
Removing-refitting
1.
Open the tailgate and remove the parcel
shelf.
2.
Fold down the rear seat and lift the spare
wheel cover.
3. Undo the screws (arrowed) and remove
the protective cover.
4.
Disconnect the electrical connections and
the pipes from the fuel gauge sender unit.
46
Publication no. 506.670/01
