Bravo-Brava
Bodywork
Bumpers
70.
3
L-"^^"~~~
\ /
// / /
sir
\I\IY
^
^H 1878077000 !■
1 \\\ \ W
P4A001M02

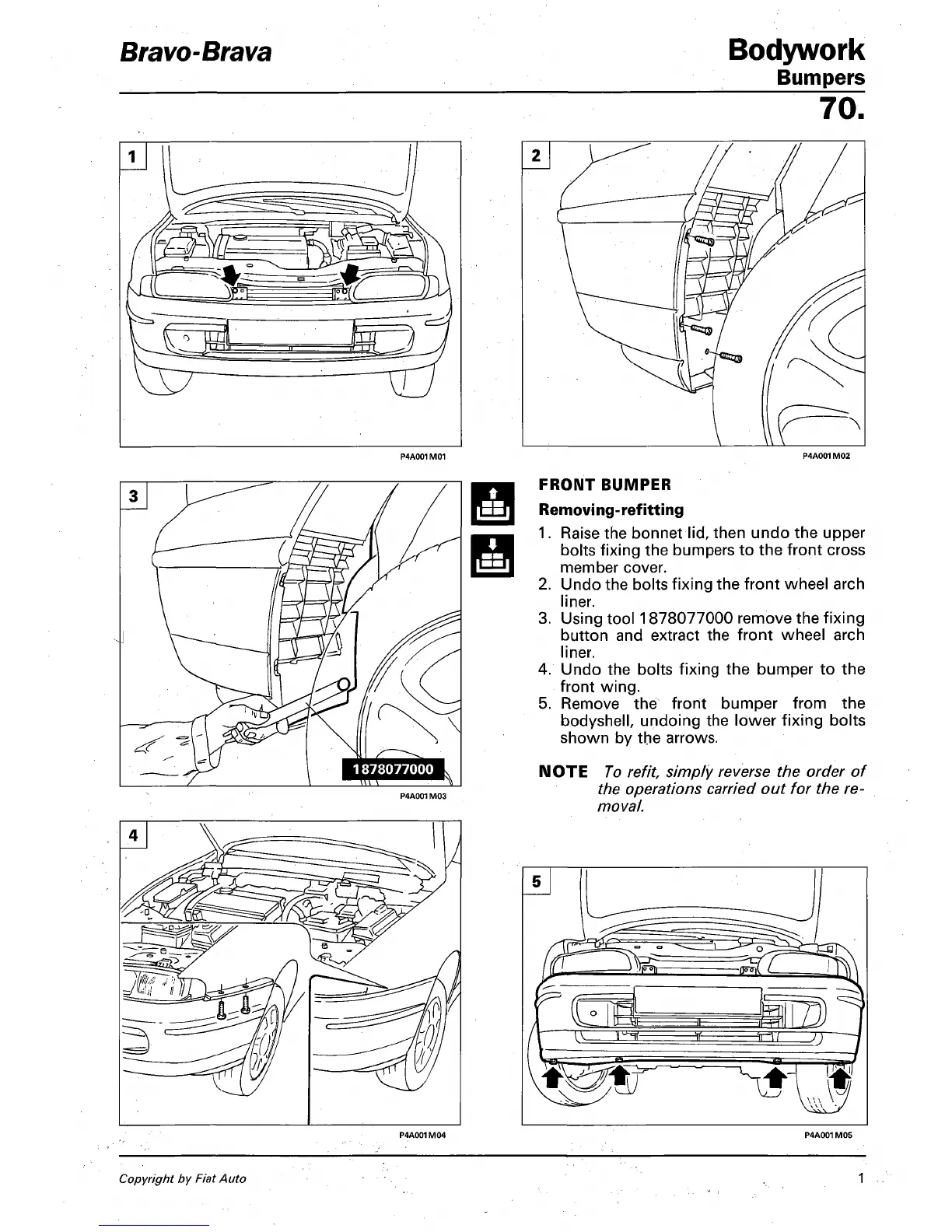

FRONT BUMPER
Removing-refitting
1.
Raise the bonnet lid, then undo the upper
bolts fixing the bumpers to the front cross
member cover.
2.
Undo the bolts fixing the front wheel arch
liner.
3. Using tool 1878077000 remove the fixing
button and extract the front wheel arch
liner.
4.
Undo the bolts fixing the bumper to the
front wing.
5. Remove the front bumper from the
bodyshell,
undoing the lower fixing bolts
shown by the arrows.
NOTE To
refit,
simply reverse the order of
the operations carried out for the re-
moval.
P4A001M04 P4A001M05
Copyright by Fiat Auto
1
