Electrical system
Fuse,
relay and control units
Bravo-Brava
55.

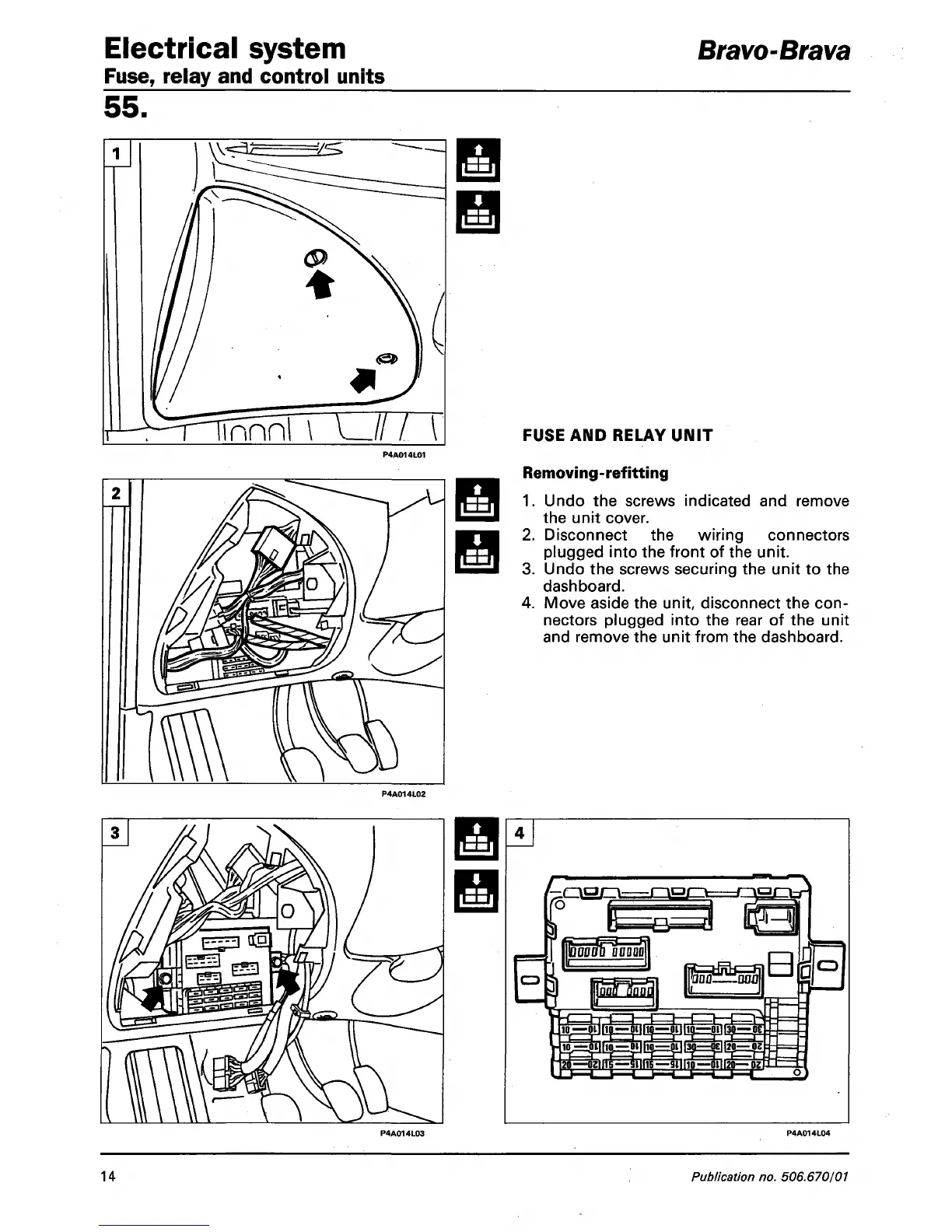

FUSE AND RELAY UNIT
Removi ng - ref itti ng
1.
Undo the screws indicated and remove
the unit cover.
2.
Disconnect the wiring connectors
plugged into the front of the unit.
3. Undo the screws securing the unit to the
dashboard.
4.
Move aside the unit, disconnect the
con-
nectors plugged into the rear of the unit
and remove the unit from the dashboard.
14
Publication no. 506.670/01
