Bodywork
Seats
Bravo-Btava
70.
P4A024M06

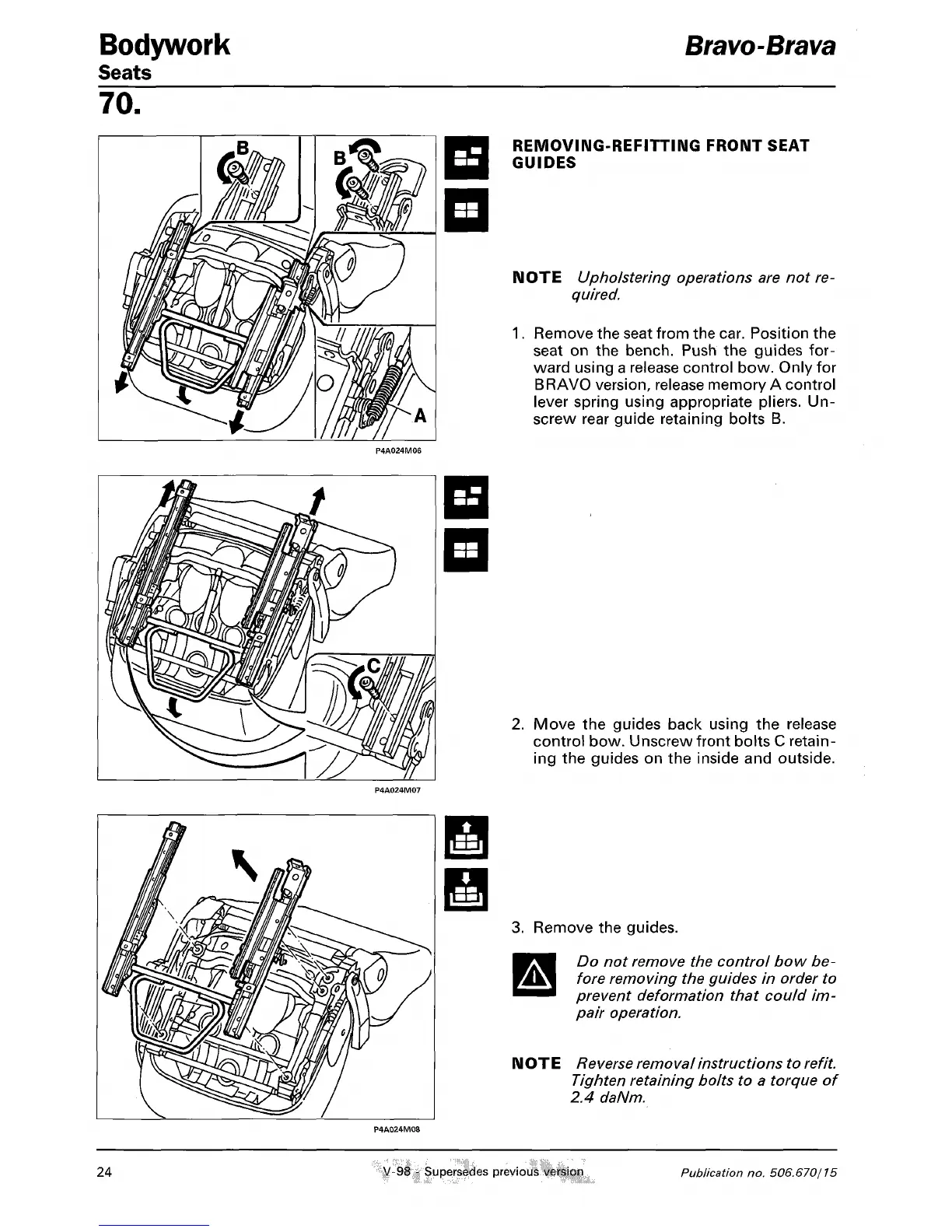

REMOVIIMG-REFITTIIMG FRONT SEAT
GUIDES
NOTE Upholstering operations are not re-
quired.
1.
Remove the seat from the car. Position the
seat on the bench. Push the guides for-
ward using a release control bow. Only for
BRAVO version, release memory A control
lever spring using appropriate pliers. Un-
screw rear guide retaining bolts B.
Move the guides back using the release
control bow. Unscrew front bolts C retain-
ing the guides on the inside and outside.
P4A024M07
3. Remove the guides.
Do not remove the control bow be-
fore removing the guides in order to
prevent deformation that could im-
pair operation.
NOTE Reverse removal instructions to
refit.
Tighten retaining bolts to a torque of
2.4 daNm.
P4A024M08
24
V-98 - Supersedes previous
yM|jji|
Publication no. 506.670/15
To Next Page
