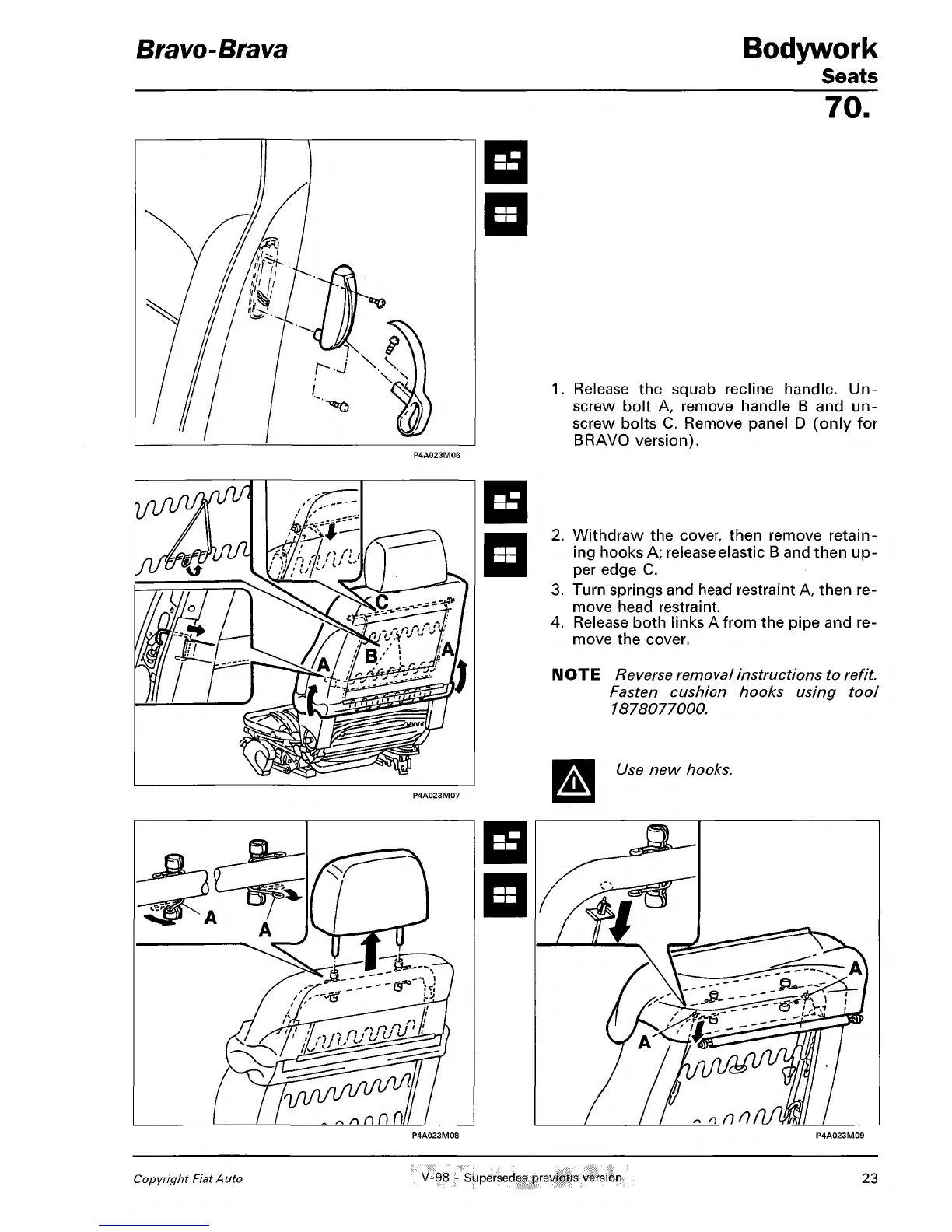

Release the squab recline handle. Un-
screw bolt A, remove handle B and un-
screw bolts C. Remove panel D (only for
BRAVO version).
P4A023M06
P4A023M07
2.
Withdraw the cover, then remove retain-
ing hooks A; release elastic B and then up-
per edge C.
3. Turn springs and head restraint A, then re-
move head restraint.
4.
Release both links A from the pipe and re-
move the cover.
NOTE Reverse removal instructions to
refit.
Fasten cushion hooks using tool
1878077000.
Use new hooks.
P4A023M08
P4A023M09
