Fiat Brava - Removing-Refitting Control Unit Air Bag System

To Next Page

To Previous Page

Electrical equipment

Air bag

Bravo-Brava

55.

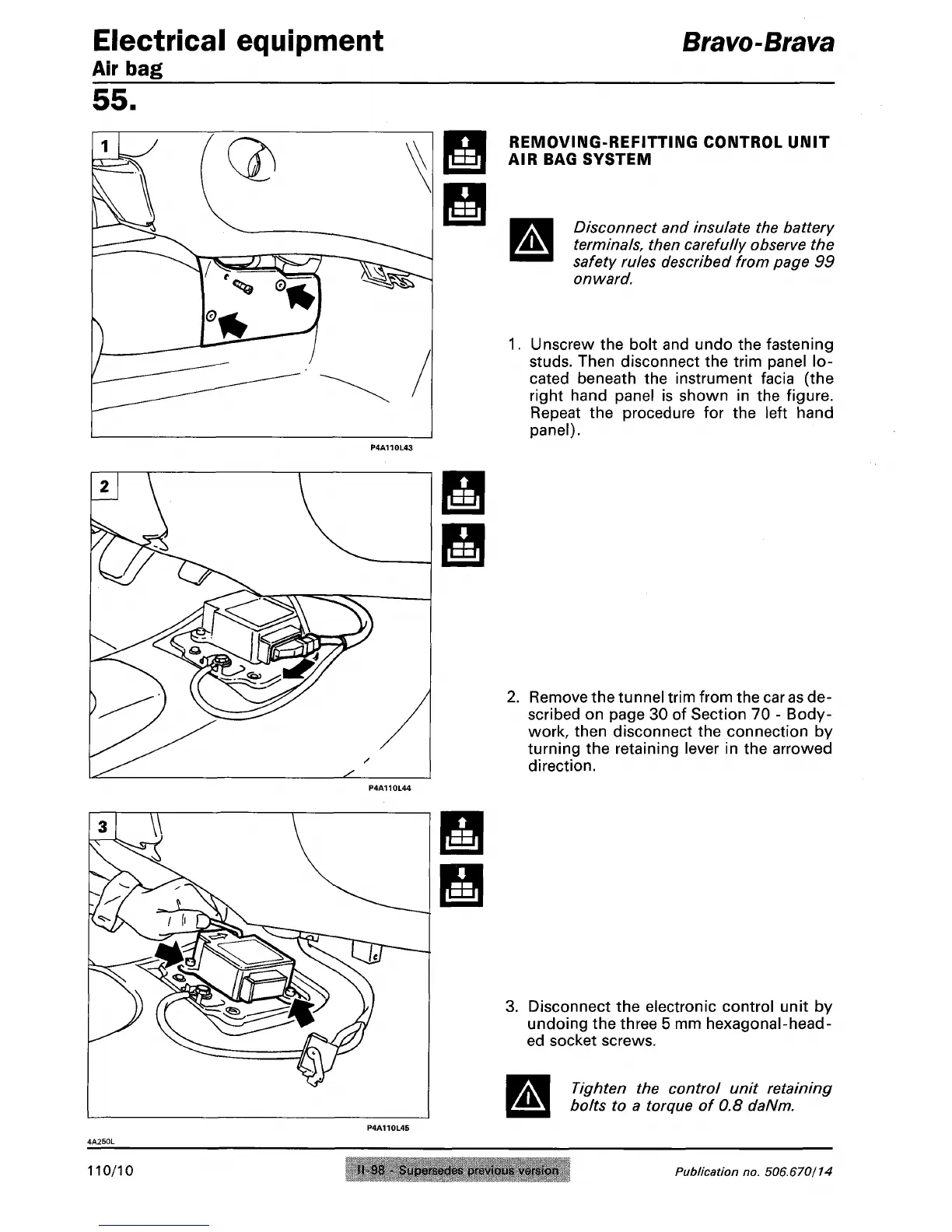

REMOVING-REFITTING CONTROL UNIT

AIR BAG SYSTEM

Disconnect and insulate the battery

terminals, then carefully observe the

safety rules described horn page 99

onward.

Unscrew the bolt and undo the fastening

studs.

Then disconnect the trim panel lo-

cated beneath the instrument facia (the

right hand panel is shown in the figure.

Repeat the procedure for the left hand

panel).

Remove the tunnel trim from the car

de-

scribed on page 30 of Section 70 - Body-

work, then disconnect the connection by

turning the retaining lever in the arrowed

direction.

Disconnect the electronic control unit by

undoing the three 5 mm hexagonal-head-

ed socket screws.

Tighten the control unit retaining

bolts to a torque of 0.8 daNm.

110/10

11-98 - Supersedes previous version

Publication no. 506.670/74
