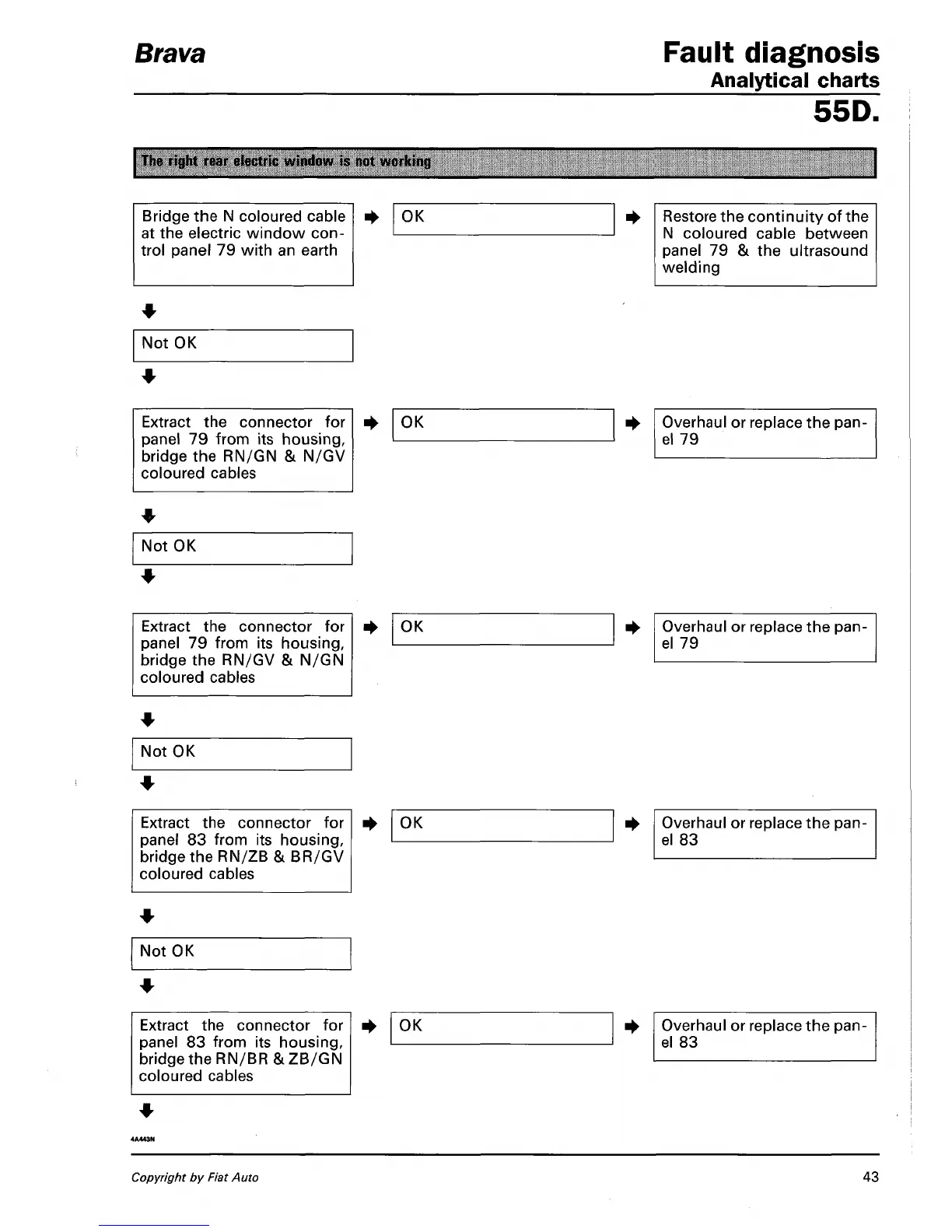

Fiat Brava - 55 D

Brava Fault diagnosis
Analytical charts
55D.
The riqht rear electric window is not working
Bridge the N coloured cable
at the electric window con-
trol panel 79 with an earth
OK
Restore the continuity of the
N coloured cable between
panel 79 & the ultrasound
welding
Not OK
Extract the connector for
panel 79 from its housing,
bridge the RN/GN & N/GV
coloured cables
OK Overhaul or replace the pan-
el 79
Not OK
Extract the connector for
panel 79 from its housing,
bridge the RN/GV & N/GN
coloured cables
OK Overhaul or replace the pan-
el 79
Not OK
Extract the connector for
panel 83 from its housing,
bridge the RN/ZB & BR/GV
coloured cables
OK Overhaul or replace the pan-
el 83
Not OK
Extract the connector for
panel 83 from its housing,
bridgetheRN/BR&ZB/GN
coloured cables
OK Overhaul or replace the pan-
el 83
Copyright by Fiat Auto
