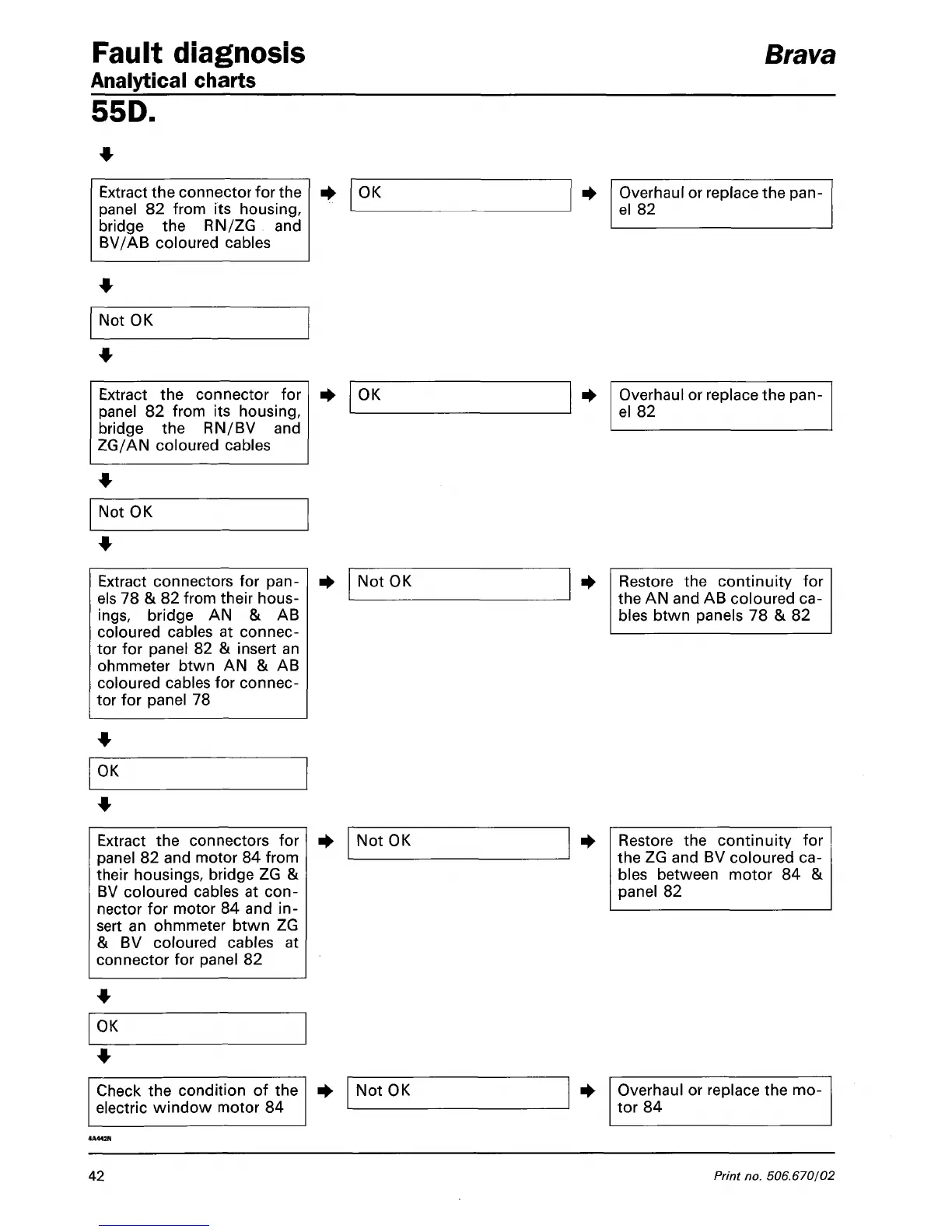

Fault diagnosis
Analytical charts
55D.
Extract the connector for the
panel 82 from its housing,
bridge the RN/ZG and
BV/AB coloured cables
*
Not OK
*
Extract the connector for
panel 82 from its housing,
bridge the RN/BV and
ZG/AN coloured cables
4
Not OK
4
Extract connectors for
pan-
els 78 & 82 from their hous-
ings,
bridge AN & AB
coloured cables at connec-
tor for panel 82 & insert an
ohmmeter btwn AN & AB
coloured cables for connec-
tor for panel 78
*
OK
*
Extract the connectors for
panel 82 and motor 84 from
their housings, bridge ZG &
BV coloured cables at
con-
nector for motor 84 and in-
sert an ohmmeter btwn ZG
& BV coloured cables at
connector for panel 82
4
OK
4
Check the condition of the
electric window motor 84
42 Print no. 506.670/02
Brava
OK Overhaul or replace the
pan-
el 82
OK Overhaul or replace the
pan-
el 82
Not OK
Restore the continuity for
the AN and AB coloured ca-
bles btwn panels 78 & 82
Not OK Restore the continuity for
the ZG and BV coloured ca-
bles between motor 84 &
panel 82
Not OK Overhaul or replace the mo-
tor 84
To Next Page
