Bravo-Brava

10,

Electrical system

Wiring diagrams

55.

Model:

1910 100 BHP

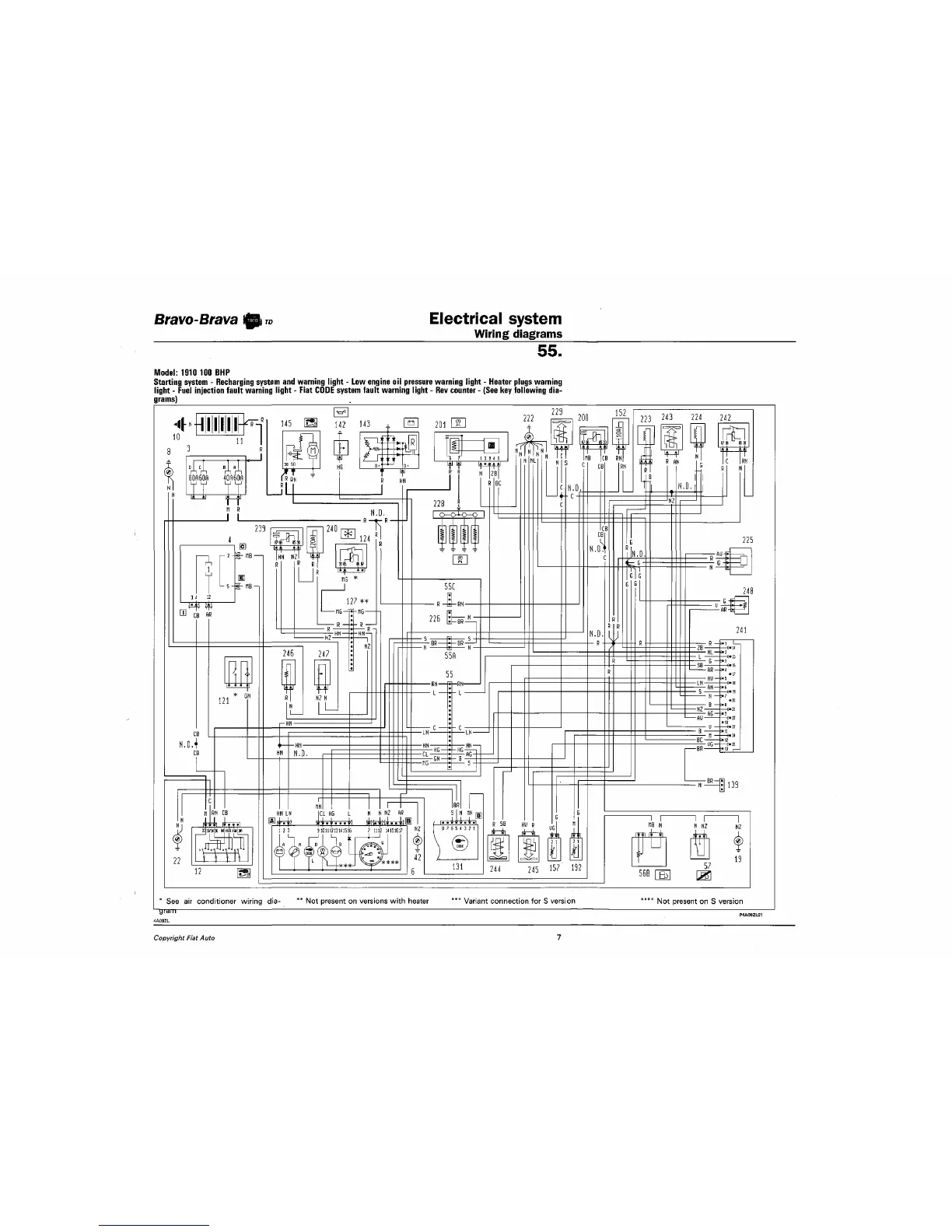

Starting system - Recharging system and warning light - Low engine oil pressure warning light - Heater plugs warning

light - Fuel injection fault warning light - Fiat CODE system fault warning light - Rev counter - (See key following dia-

grams)

See air conditioner wiring dia- "" Not present on versions with heater

Variant connection for S version Not present on S version

grain

4A0SZL
