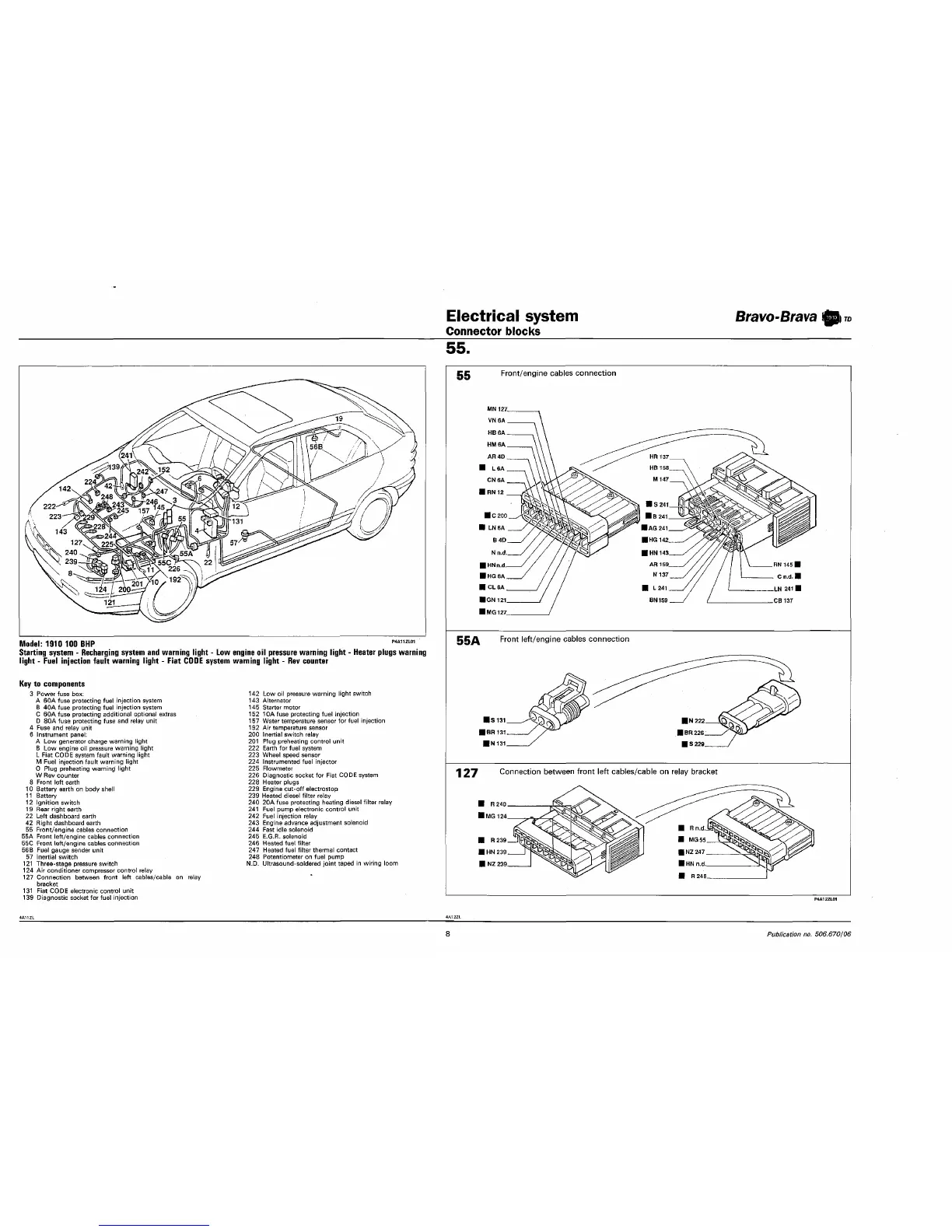

Electrical system
Connector blocks
Bravo-Brava
55.
Model:
1910
100 BHP
P4A11ZL01
Starting system
-
Recharging system and warning light
-
Low engine
oil
pressure warning light
-
Heater plugs warning
light
-
Fuel injection fault warning light
-
Fiat CODE system warning light
-
Rev counter
Key
to
components
3 Power fuse
box:
A
60A
fuse protecting fuel injection system
B
40A
fuse protecting fuel injection system
C
60A
fuse protecting additional optional extras
D
80A
fuse protecting fuse
and
relay unit
4 Fuse
and
relay unit
6 Instrument panel:
A
Low
generator charge warning light
B
Low
engine
oil
pressure warning light
L Fiat CODE system fault warning light
M Fuel injection fault warning light
0 Plug preheating warning light
W Rev counter
8 Front left earth
10 Battery earth
on
body shell
11 Battery
12 Ignition switch
19 Rear right earth
22 Left dashboard earth
42 Right dashboard earth
55 Front/engine cables connection
55A Front left/engine cables connection
55C Front left/engine cables connection
56B Fuel gauge sender unit
57 Inertial switch
121 Three-stage pressure switch
124
Air
conditioner compressor control relay
127 Connection between front left cables/cable
on
relay
bracket
131 Fiat CODE electronic control unit
139 Diagnostic socket
for
fuel injection
142
Low oil
pressure warning light switch
143 Alternator
145 Starter motor
152
10A
fuse protecting fuel injection
157 Water temperature sensor
for
fuel injection
192
Air
temperature sensor
200 Inertial switch relay
201 Plug preheating control unit
222 Earth
for
fuel system
223 Wheel speed sensor
224 Instrumented fuel injector
225 Flowmeter
226 Diagnostic socket
for
Fiat CODE system
228 Heater plugs
229 Engine cut-off electrostop
239 Heated diesel filter relay
240
20A
fuse protecting heating diesel filter relay
241 Fuel pump electronic control unit
242 Fuel injection relay
243 Engine advance adjustment solenoid
244 Fast idle solenoid
245 E.G.R. solenoid
246 Heated fuel filter
247 Heated fuel filter thermal contact
248 Potentiometer
on
fuel pump
N.D. Ultrasound-soldered joint taped
in
wiring loom
55
Front/engine cables connection
55A
Front left/engine cables connection
127
Connection between front left cables/cable on relay bracket
I R239
I
HN
239
I NZ
239.
8
Publication no. 506.670/06
