Electrical system
Lighting
Bravo-Brava
55.

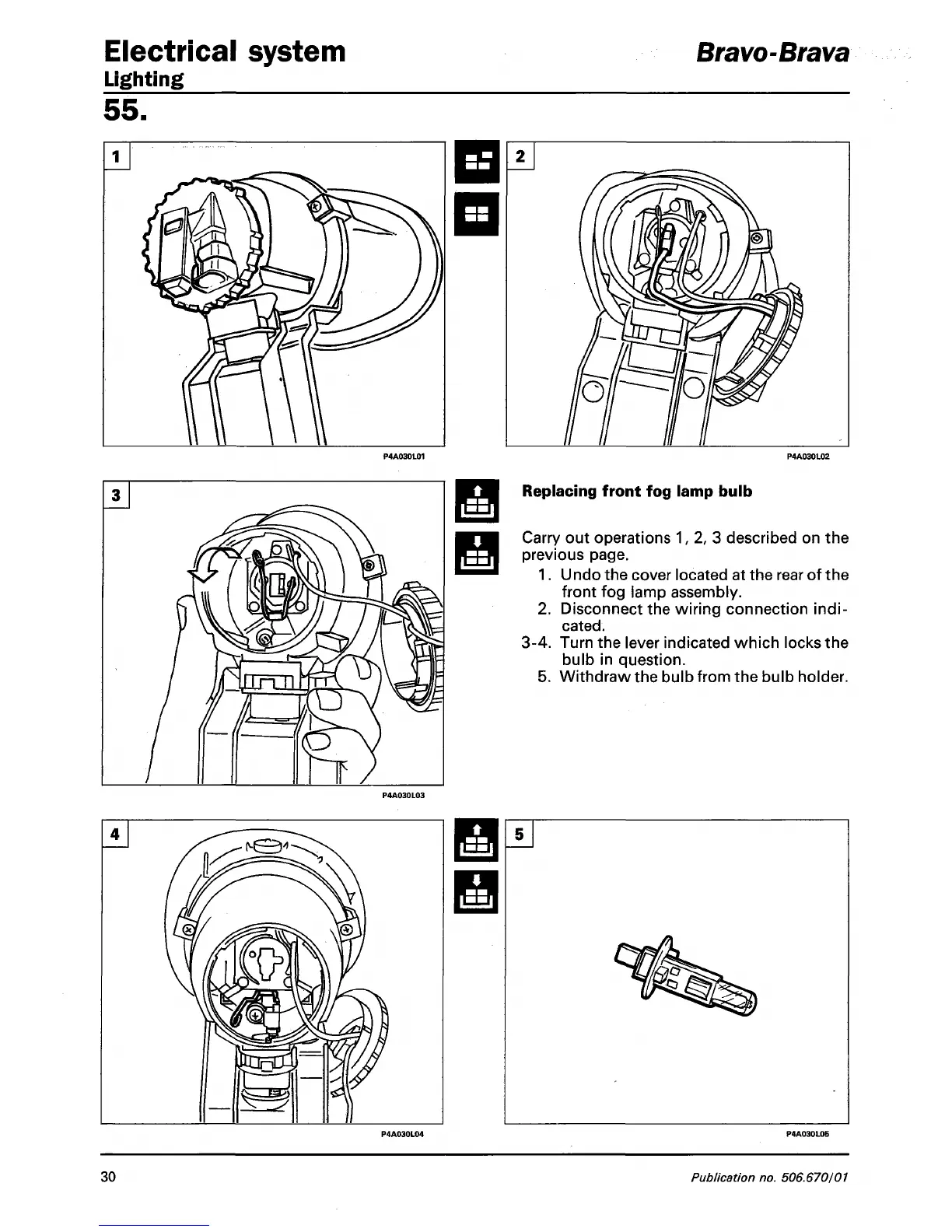

Replacing front fog lamp bulb
Carry out operations 1, 2, 3 described on the
previous page.
1.
Undo the cover located at the rear of the
front fog lamp assembly.
2.
Disconnect the wiring connection
indi-
cated.
3-4. Turn the lever indicated which locks the
bulb in question.
5. Withdraw the bulb from the bulb holder.
30
Publication no. 506.670/01
