Bravo-Brava
Electrical system
Lighting
55.

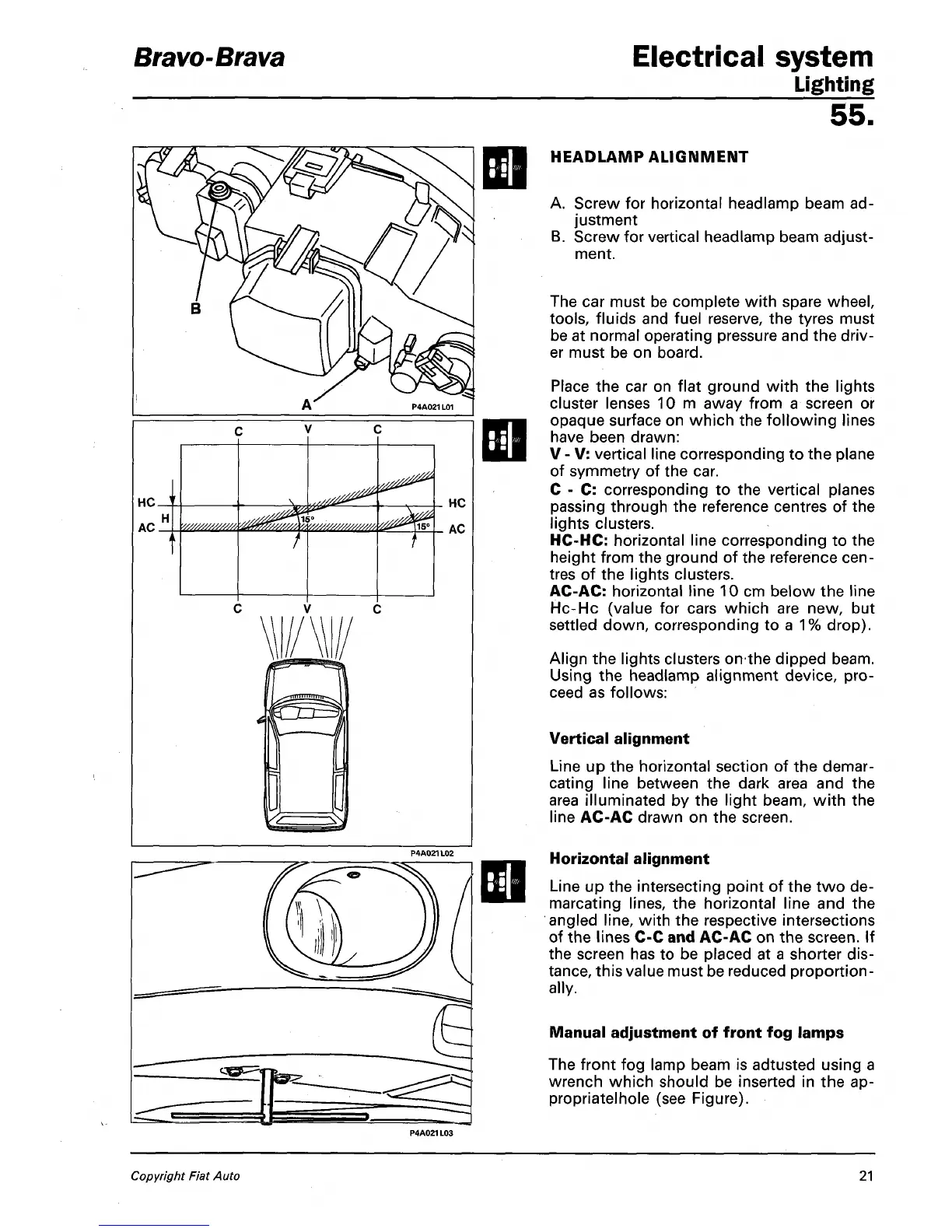

HEADLAMP ALIGNMENT
A. Screw for horizontal headlamp beam ad-
justment
B. Screw for vertical headlamp beam adjust-
ment.
The car must be complete with spare wheel,
tools,
fluids and fuel reserve, the tyres must
be at normal operating pressure and the driv-
er must be on board.
Place the car on flat ground with the lights
cluster lenses 10 m away from a screen or
opaque surface on which the following lines
have been drawn:
V - V: vertical line corresponding to the plane
of symmetry of the car.
C-C: corresponding to the vertical planes
passing through the reference centres of the
lights clusters.
HC-HC:
horizontal line corresponding to the
height from the ground of the reference
cen-
tres of the lights clusters.
AC-AC:
horizontal line 10 cm below the line
Hc-Hc (value for cars which are new, but
settled down, corresponding to a 1% drop).
Align the lights clusters onthe dipped beam.
Using the headlamp alignment device, pro-
ceed as follows:
Vertical alignment
Line up the horizontal section of the demar-
cating line between the dark area and the
area illuminated by the light beam, with the
line AC-AC drawn on the screen.
Horizontal alignment
Line up the intersecting point of the two de-
marcating lines, the horizontal line and the
angled line, with the respective intersections
of the lines C-C and AC-AC on the screen. If
the screen has to be placed at a shorter dis-
tance,
this value must be reduced proportion-
ally.
Manual adjustment of front fog lamps
The front fog lamp beam is adtusted using a
wrench which should be inserted in the ap-
propriatelhole (see Figure).
Copyright Fiat Auto
21
