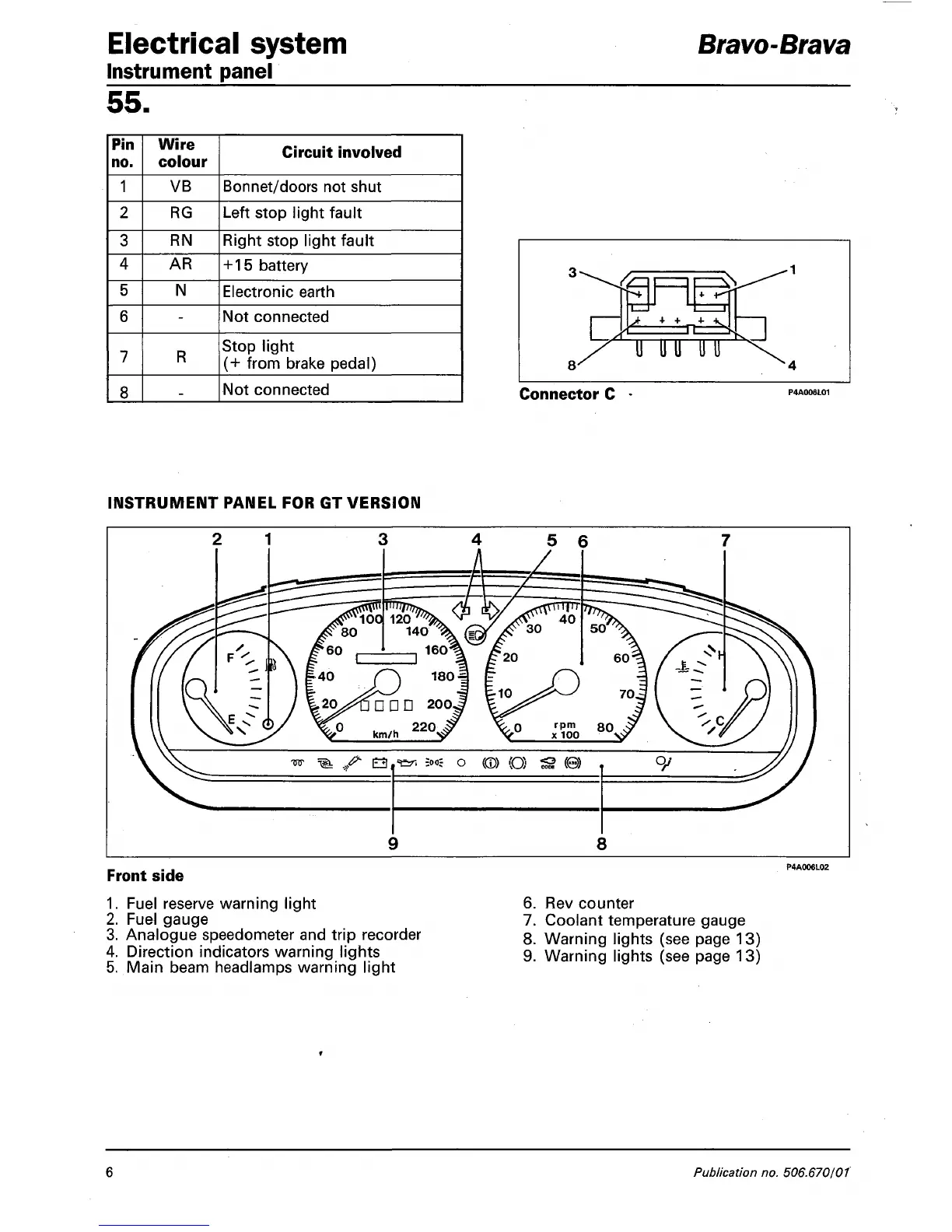

Fiat Brava - Instrument Panel for GT Version

To Next Page

To Previous Page

Electrical system

Instrument panel

Bravo-Brava

55.

no.

Wire

colour

Circuit involved

Bonnet/doors not shut

Left stop light fault

Right stop light fault

battery

Electronic earth

Not connected

Stop light

(+ from brake pedal)

Not connected

Connector C

INSTRUMENT PANEL FOR GT VERSION

Front side

Fuel reserve warning light

Fuel gauge

3. Analogue speedometer and trip recorder

Direction indicators warning lights

5. Main beam headlamps warning light

6. Rev counter

7. Coolant temperature gauge

8. Warning lights (see page 13)

9. Warning lights (see page 13)

6 Publication no. 506.670/01
